Universal International Standard UV LED Curing Machine Offer High Power 10W 365nm

UV LED Spot Light Source 10W is a high power, small area UV curing machine. The cooling method if air cooling.

  • model no. :

    UV LED Curing Machine 10W
  • Brand:

    UV-LED CURING
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T
  • original region :

    CHINA
Product Details

UV Spot Light Source 10W is high power UV LED curing UV glue source, small area of UV glue curing high power radiation intensity of 10 w, air cooling heat dissipation, power controller host and an air-cooled irradiation head, convenient to carry, light weight, high strength, fast curing speed.


Parameters

Brand: UV-LED CURING

Type: DSX233A10W

Wavelength: 365nm

Illuminance: 10000mW/cm2

Power Adapter: AC 0-250V

Plug Interface: Two feet straight, international standard

Size: L: 115MM*W: 90MM*H: 55MM

Weight: 0.2kg (including irradiation head, power cables)


Irradiation Parameter

Cooling Method: Air Cooling

Line Length: 1.5-2m


UV LED Curing Machine 10W



Light Spot Size

Size: 12mm external diameter

Thread: M11*0.75

1.Round Spot: φ1.5mm,φ3mm,φ4mm,φ5mm,φ6mm,φ8mm,φ10mm,φ12mm,φ15mm,φ20mm

2.Direct Rectangular Light Spot:: 3*12mm,4*16mm,5*20mm

3.90°a lens of side light (φ3mm, φ4mm,φ6mm,φ8mm, round spot)

Multiple lenses are selected for different spots. When changing, twist the lens of the inscribed part.

Shipment standard with one, can be multiple choice, optional extra.


Universal International Standard UV LED


Light of the Rectangular Lens

Rectangular Lens


The size of different spots can affect the irradiation intensity. The smaller the light spot is, the higher the irradiation intensity is.

Spot Diameter

Irradiation

Irradiation Distance

1.5mm

11000mW/cm2

3mm

3mm

10690mW/cm2

6mm

4mm

8800mW/cm2

8mm

5mm

7500mW/cm2

9mm

6mm

6700mW/cm2

10mm

8mm

3800mW/cm2

12mm

10mm

1600mW/cm2

13mm

12mm

1100mW/cm2

13mm

15mm

700mW/cm2

13mm

20mm

600mW/cm2

13mm


Small Portable High Power


UV LED Small Area Curing Machine


Instructions

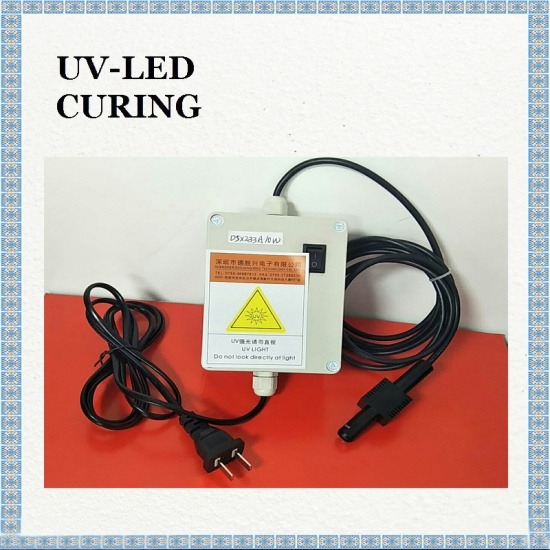

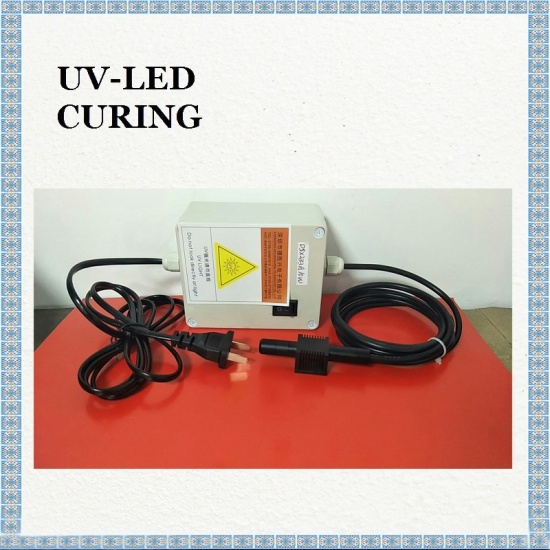

A.Power Switch B. International Standard Plug C. Cylindrical Head


Operation:

Only one switch button operation. When using, just turn on the switch, and turn off the switch manually when not in use.


UV Spot Light Source 10W 365nm


Portable Point Light Source UV LED

High Power Point Light Source UV LED 365nm
