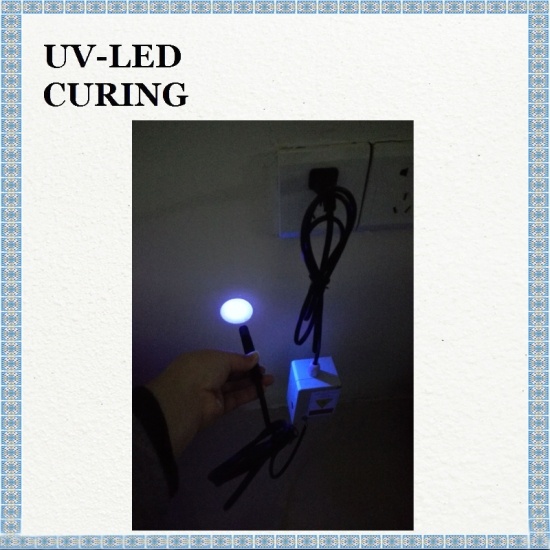

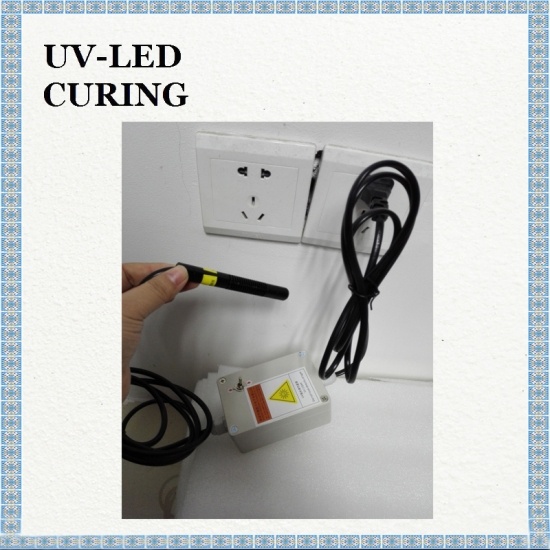

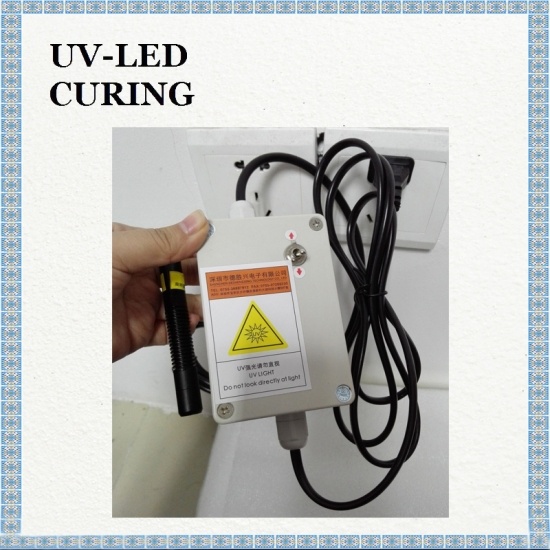

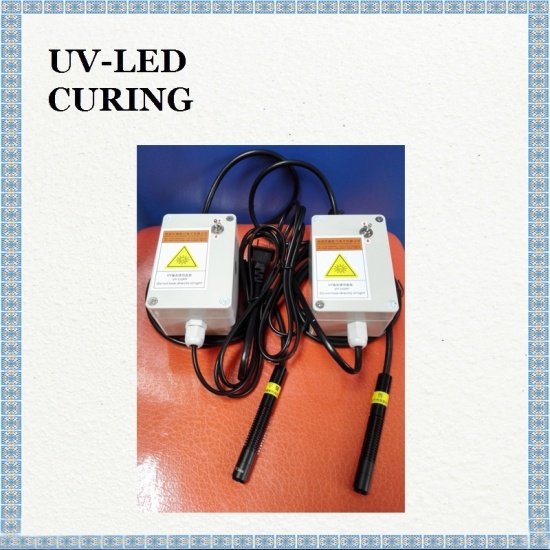

Portable UV LED Curing Glue Pen Professional LED-UV Point Light Source Irradiation Machine
is equipped with the power controller and an natural cooled cylindrical head, which is easy to carry, light weight and high strength, fast curing speed.
model no. :
Portable UV LED Curing Glue PenBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINAHigh Power UV LED Curing Light Source is according to international standard as a design. The paroduct is high irradiation intensity 7W, natural cooling, easy to carry, etc..
Parameters
Brand: UV-LED CURING
Type: DSX033B7W
Illuminance: 7000mW/cm2
Power Adapter: AC 0-250V
Plug Interface: Two feet straight, international standard
Size: L: 98MM*W: 67MM*H: 49MM
Weight: 0.18kg (including irradiation head, power cables)
Irradiation Parameter
Cooling Method: Natural Cooling
Line Length: 1.5-2m
Light Spot Size
Size: 12mm external diameter
Thread: M11*0.75
1.Round Spot: φ1.5mm,φ3mm,φ4mm,φ5mm,φ6mm,φ8mm,φ10mm,φ12mm,φ15mm,φ20mm
2.Direct Rectangular Light Spot:: 3*12mm,4*16mm,5*20mm
3.90°a lens of side light (φ3mm, φ4mm,φ6mm,φ8mm, round spot)
Multiple lenses are selected for different spots. When changing, twist the lens of the inscribed part.
Shipment standard with one, can be multiple choice, optional extra.
Light of the Rectangular Lens
The size of different spots can affect the irradiation intensity. The smaller the light spot is, the higher the irradiation intensity is.
Instructions

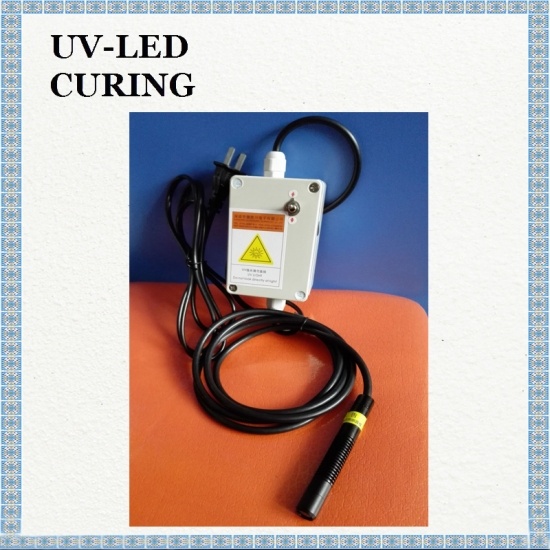

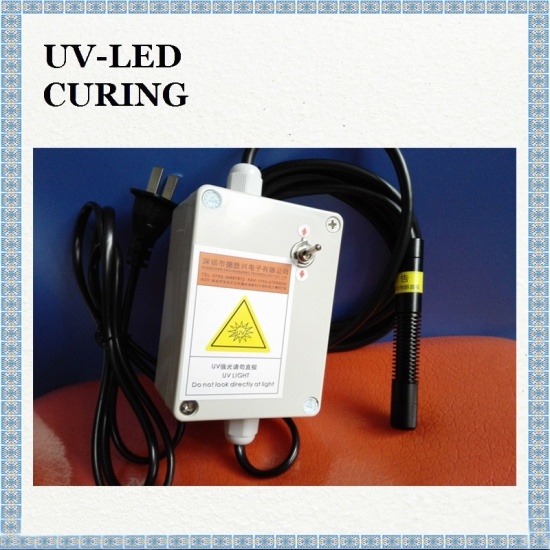

A.Power Switch B. International Standard Plug C. Cylindrical Head
Operation:
Only one switch button operation. When using, just turn on the switch, and turn off the switch manually when not in use.
High power uv led curing adhesive UV LED spot curing system for mobile phone camera.
Hand-Held Point Light UV Curing Machine, the first of the world, likes a pen, solidified UV glue, with a USB interface.
The effect of press polish, UV Glue UV LED Spot Curing System, is better than mercury lamp. Simple operation and high efficiency.
UV Spot Light Source UV Curing Pen is easy to handle, convenient to carry. Its wavelength has 365nm and 395nm.
UV LED Spoint curing machine is for fast curing UV glue only 1-5 seconds. The facility is using air cooling to shorten the attenuation of the lamp and increase the service life.
Spot UV LED UV Curing Pen is for fast curing UV glue only in 1-5s. Its irradiation head is designed for as a pen, convenient to install carriage in using.
