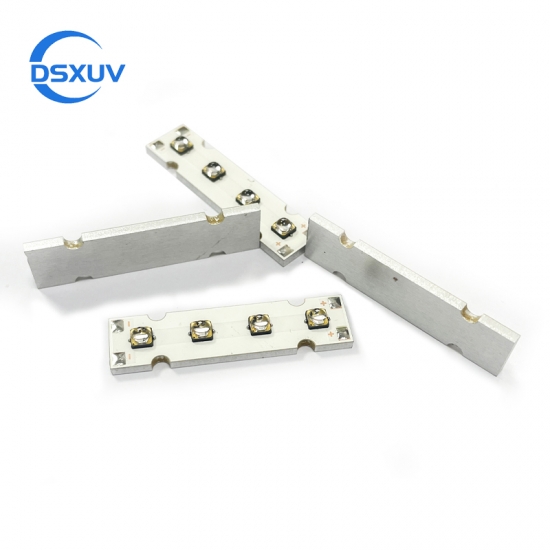

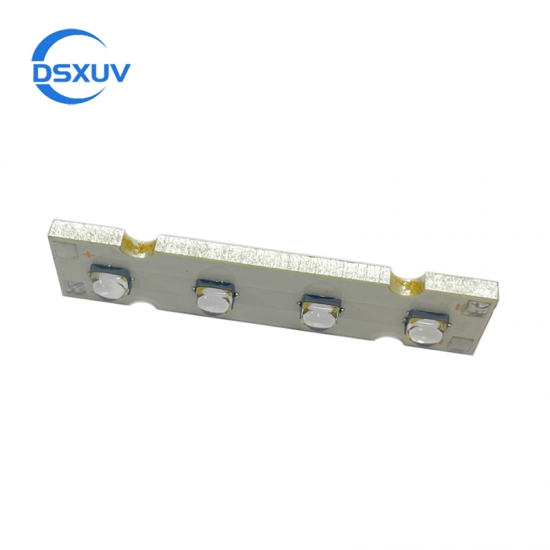

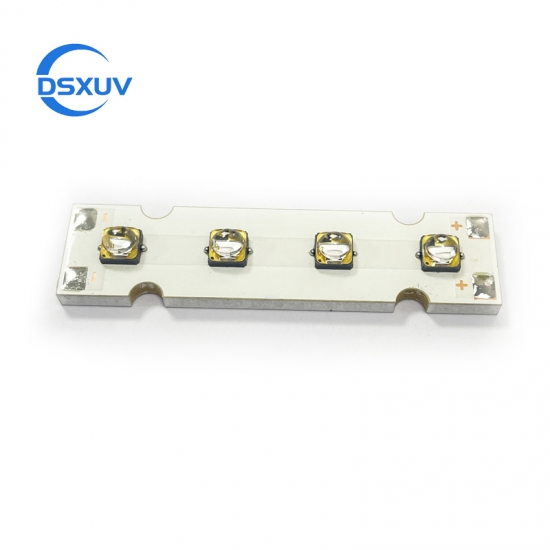

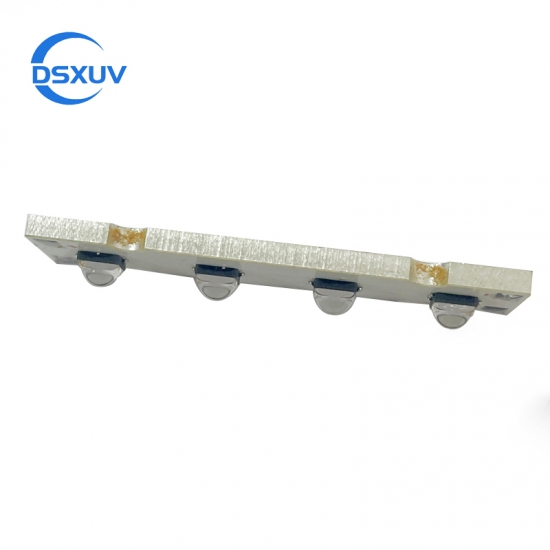

High Power 20W 365nm UV LED Module Using CUN6GB1A Ultraviolet LED Light Beads

High Intensity 365nm UV LED Light Module are designed for high current operation and high power output applications.

  • model no. :

    365nm UV Strip

  • Brand:

    DSXUV

  • port of dispatch :

    Shenzhen

  • Payment :

    T/T 100% Before Shipment

  • original region :

    China
contact now Download
Product Details

High Performance 365nm UV LED Light Module Accessories are designed for high current operation and high power output applications. It incorporates state of the art SMD design and low thermal resistant material. CUN6GB1A Ultraviolet LED Light is ideal UV light source for curing, printing, and detecting applications.


Parameters for 365nm UV Light Module :

Type : DSXUV-4-CUN6GB1A

Brand : DSXUV

Wavelength : 365nm

Voltage : 16-20V

Current : 1.4A

Power : 20W

Dimension : L 40mm*W 10mm* H 2.0mm

Driver : constant current power supply is recommended


20W COB LED UV Module for Linear UV Curing Machine

Customized 365nm UV LED Light Modules Curing UV Gel


Features for 365nm UV Strip Module :

1. super high power output

2. designed for high current operation

3. low thermal resistance

4. SMT type

5. lead free product

6. RoHS compliant

Ultraviolet LED 365nm UV Lamp Module Curing UV glue

UV LED Module for Ultraviolet Gel Ink Curing Manufacturer

High Performance UV LED Lamp Module Curing UV Ink


Applications for 365nm UV LED COB Module :

1. UV curing, dental curing

2. Printing, coatings, adhesives

3. Counterfeit detection / security

4. UV torch

5. Fluorescence photography

6. Crime inspection

7. oil leak detection


Extensive use of detailed explanations :

1. Offset printing : the long distance exposure required for an offset printing machine, whether it is a chain delivery component or between colours.

2. Ink-jet printing : used for conventional curing and snack curing in single-pass printers, and conventional curing in multi-channel printers.

3. Other printing : suitable for UV offset rotary presses. Flexographic printing press, screen printing press, etc.

4. Coatings : for curing applications of optical fiber coatings, wood coatings and hard coatings for mobile phone shells, etc.

5. UV adhesive curing : UV adhesive curing used for touch screen, electronics substrate manufacturing, etc.

6. Exposure : exposure application for semiconductor lens manufacturing equipment, LCD panel pattern formation, PCB circuit formation, etc.

CUN6GB1A UV LED Light Panel Curing UV Glue Supplier

Related Tags : 365nm UV Light Module Accessories 365nm COB LED UV Module UV LED Lamp Panel Curing UV Gel UV Lamp Module Curing UV Glue 365nm UV LED Light Module
