DSX-S03-UVLEDs Energy Saving 395nm UV LED Lamp Modules UV Curing is the use of quartz glass lens, better reliable. Metal material,best weather resistance,waterproof light.
model no. :
395nm UV LED ModulesBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/T 100% Before Shipmentoriginal region :
CHINADSX-S03-UVLEDs 395nm UV LED Modules Curing Modules for UV Printing is the use of quartz glass lens, better reliable. Metal material, best weather resistance,waterproof light. Heat conductivity coefficient is >180W/M.K
With minimum power consumption per unit area of the maximumintensity.
The DSX-SO3-UVLEDS is ideal for all UV printing field and UV curing.
Table of High Quality 395nm UV LED Chip LED Module :
|
Products |
Ordering Part Number |
Description |
|
DSX-SO3-UVLEDS |
395nm |

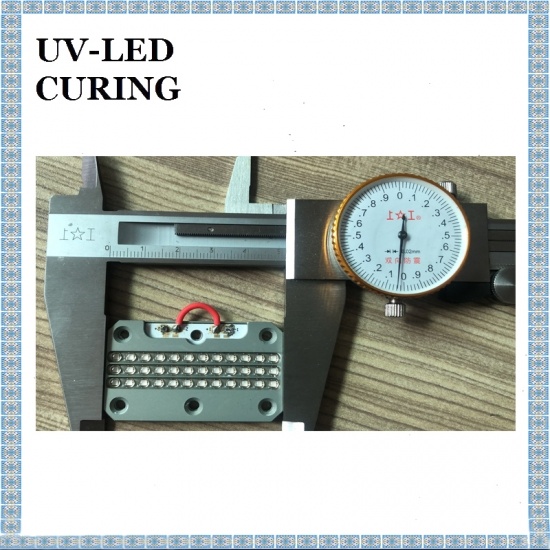

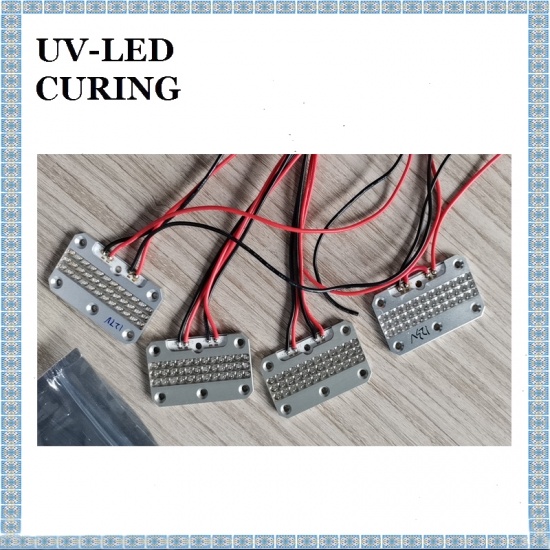

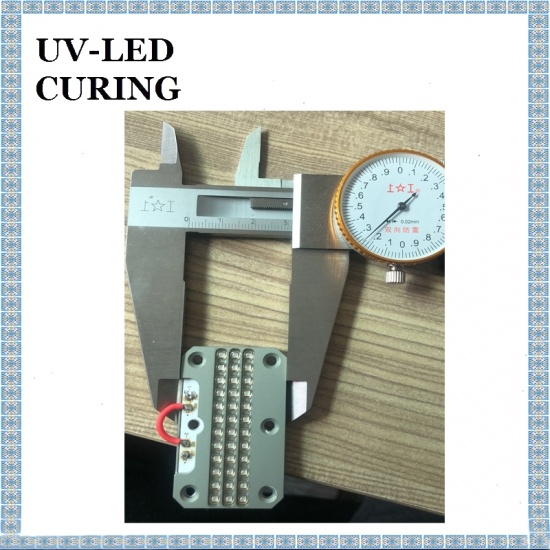

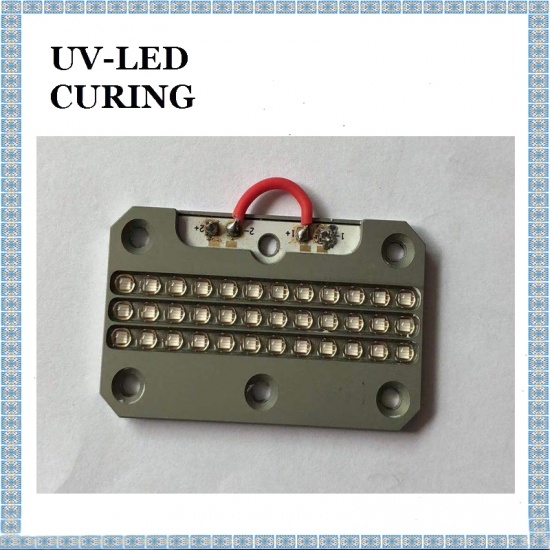

DSX-SO3-UVLEDS consist of 36 chips, a metal substrate and a rectangle copper-core PCB. |
Characteristics of High Performance LED UV Light Module for 3D Printing :
Absolute Maximum Ratings(Ta=25℃）
|
Parameter |
Rating |
|
DSX-SO3-UVLEDS Series |
|
|
Dc Forward Current（mA) |
700mA@36S,1.4A@18S2P |
|
LED Junction Temperature |
150℃ |
|
LED Operating Temperature |
-40~85℃ |
|
Storage Temperature |
-40~85℃ |
|
Soldering Temperature |
Max.260℃/Max.10sec (JEDEC 020) |
|
Reverse Voltage |
Not designed to be driven in reverse bias（VR<5V) |
|
ESD Sensitiveby |
2，000V HBM(JESD-22A-114-B) |
General Characteristics of Customized 395nm UV LED Light Module for UV Resin :
at 500mA (Ta=25℃）
|
Part number |
Wavelength λp(Typical) |
VF |
Radiant intensity |
View Angle |
|
DSX-SO3-395 |
395nm |
62-65V |
10-12w/cm2 |
60° |
Notes:
The Radiant intensity is measured with an accuracy of ±10%
If need higher levels of radiant flux performance,please contact Sales.
Notes：
1. Drawing is not to scale
2. All dimensions are in millimetre
3. Dimensions are ±0.15mm unless otherwise indicated
Cautions of Low Temperature 395nm Ultraviolet LED Module :
Users are requested to comply with the laws and public regulations conceming safety.
More any information, please click UV LED,UV Modules, or contact us : uvcure@uvspacelight.com (Jennifer)
