The 12 Inch Semi-automatic Film Wafer Laminating Machine featuresheight adjustment, table heating, vacuum adsorption, and automatic film sticking, ensuring precise and stable lamination for semiconductor wafers. Its advanced design improves lamination accuracy and production efficiency while maintaining consistent performance. Withover 2000 successful cases, the machine has proven reliability and is widely trusted in wafer processing applications.
model no. :
DSXUV-SEMI12Color :
Whiteport of dispatch :
ShenzhenPayment :
100% T/T before shippingoriginal region :
ChinaLead Time :
15days12 inch Semi-automatic Film Wafer Laminating Machine

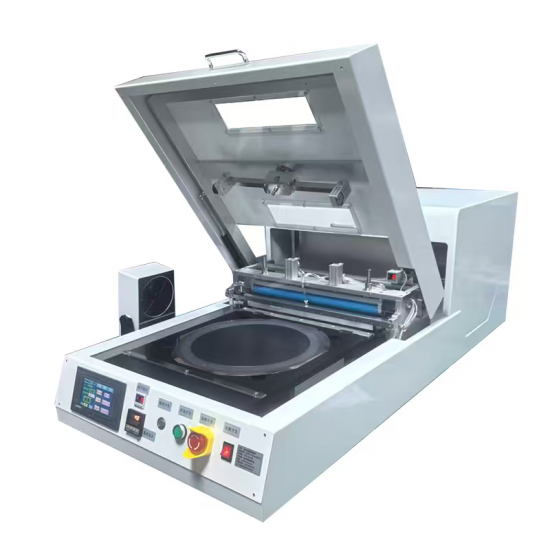

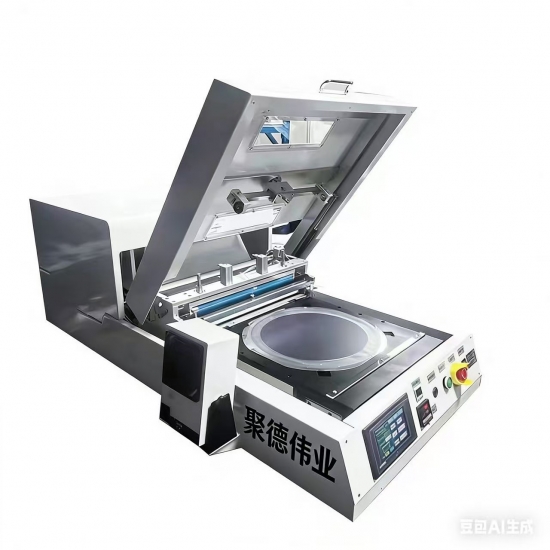

The 12 inch semi-automatic wafer laminating machine is designed for precise film lamination in semiconductor wafer processing. Suitable for semiconduct or wafer thinning applications, this chip wafer laminating equipment supports wafers with a thickness of 180–600 μmand features anadjustable tray heightto accommodate different processing requirements. With stable operation and accurate lamination performance, it helps improve efficiency and ensure reliable results in wafer manufacturing processes.
Product Name:
|
Product name: |
Wafer Film Coating Machine |
Wafer size: |
12 inch & 8 inch |
|
Color: |
white |
Model: |
DSXUV-SEMI12 |
|
Weight: |
180kg |
Rated voltage: |
AC220V |
|
Frequency |
50/60HZ |
Power: |
600W |
|
Air pressure: |
0.5-0.8Pma |
Film thickness: |
0.05-0.18mm |
|
Heating temperature: |
0-100 degrees Celsius |
Film pulling function: |
automatic film cutting |
|
Wafer thickness: |
100-800um |
Fragmentation rate: |
one in ten thousand |
|
WPH |
> 60S |
Size: |
LWH1464X650X497mm |
|
Film requirements: |
no fragments, no particles, no wrinkles, no bubbles |
Voltage: |
Match with customer country |
|
Chuck Height: |
Adjustable |
Roller pressure: |
Adjustable |

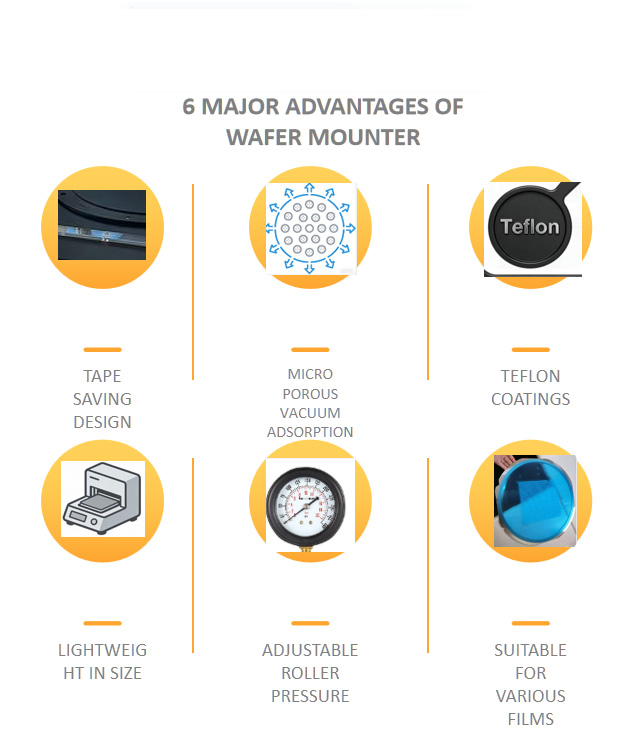

Machine Features:
1. Disk temperature should be at least>50 degrees
2. The chuck temperature can be heated to at least 95 degrees Celsius
3. 360 degree wafer edge without burrs
4. The film is flat without bubbles
5. Vacuum adsorption function of the tray
6. 12 inch standard size chuck
7. Black microporous Teflon coating on the tabletop
8. Adjustable roller pressure
9. The height of the chuck can be adjusted
10. Maximum membrane saving
DSXUV 12inch Semi-automatic Wafer Mounter Film Sticking Machine

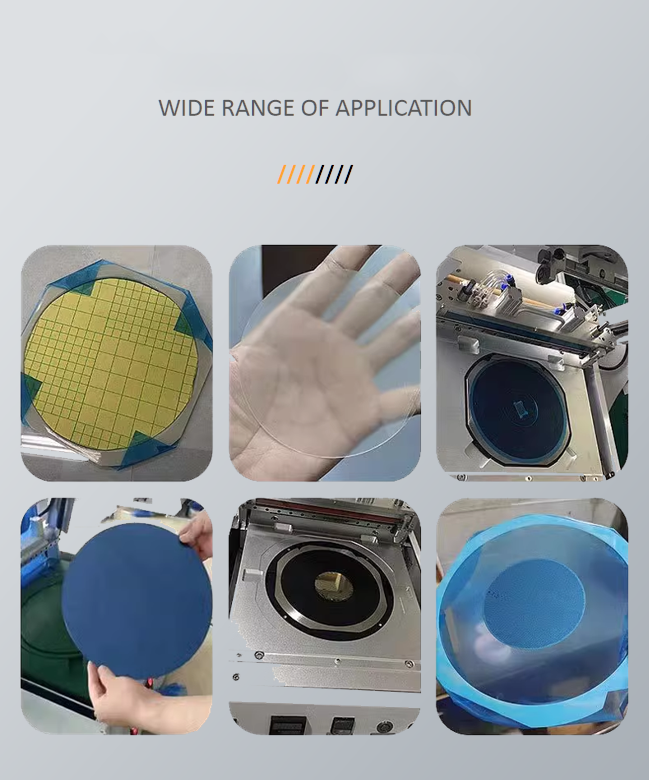

This equipment (lamator) is mainly used for 12 inch Si wafer BG film coating. No burrs, no bubbles. The wafer type is dummy wafer. This semi-automatic film sticking machine is suitable for applying film to products such as wafers, semiconductors, ceramics, and glass. It is a device used for film coating processing, specifically designed to precisely adhere thin film materials to the surface of wafers. It combines the characteristics of manual operation and automatic control, providing higher film application accuracy and efficiency while maintaining operational convenience.
Semiconductor Double Film Wafer Chip Laminating Machine
Wafer Frame Film Mounter Machine can place UV tape and blue film at the same time for using.
Manual Wafer Laminating Machine Wafer Backgrinding Mounter 6 8 12 Inches
6/8/12 inches Manual Wafer Laminator series is a fast and efficient sticking film machine, special designed for wafer, glass, LED PCB, and ceramic cutting process.
DSXUV-Wafer-M8 8 Inches Manual UV Tape Wafer Mounter
Wafer Frame Film Mounter is a machine that fixes a wafer and a ring together through a blue film or UV film.
DSXUV-Wafer-M6 6 Inches Semiautomatic Wafer Mounter For Dicing UV Film Cutting
Wafer Tape Laminating Machine is a machine that fixes a wafer and a ring together through a blue film or UV film.
Customized Glass Filter Semiconductor BG Film QFN Lamination Equipment
DSXUV accept customized various glass material film laminating machine, various UV tape blue film BG film laminating systems.
