model no. :
DSXUV26-051 SEMI AUTO WAFER MOUNTERBrand:
DSXUVport of dispatch :
SHENZHENPayment :
tt100%original region :
CHINALead Time :

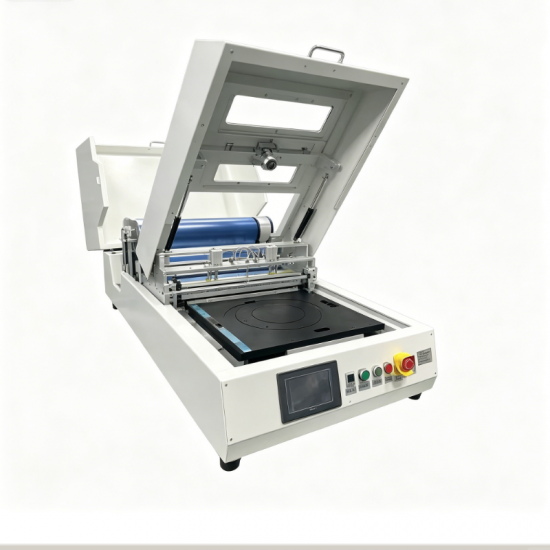

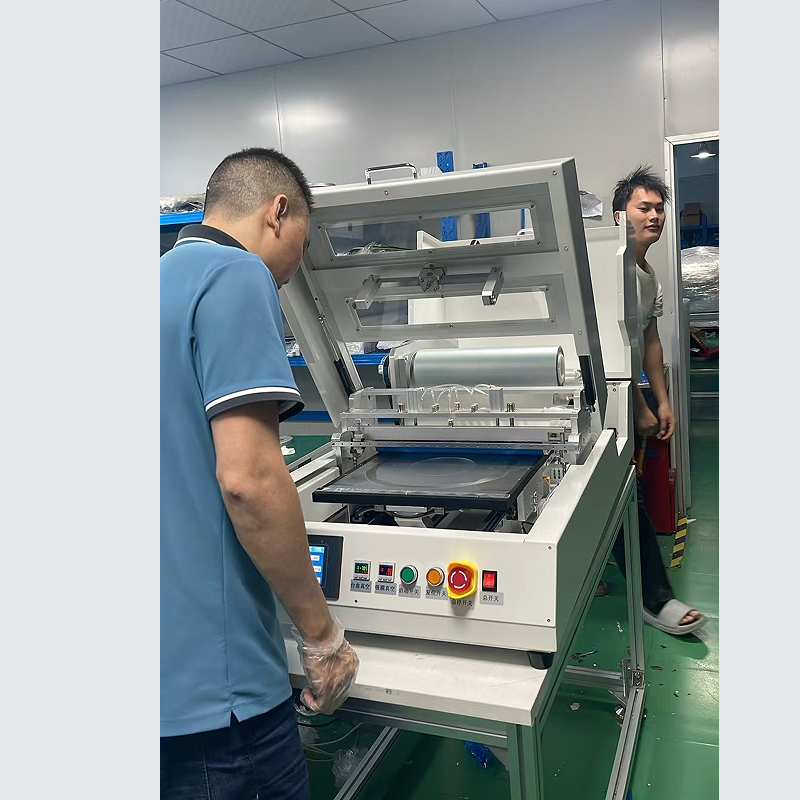

15DAYSDSXUV Semi-Automatic Mounter automates the lamination, trimming, and cutting of the tape. include heated vacuum chambers to ensure the tape is applied evenly and securely to uneven or bumped wafer surfaces.

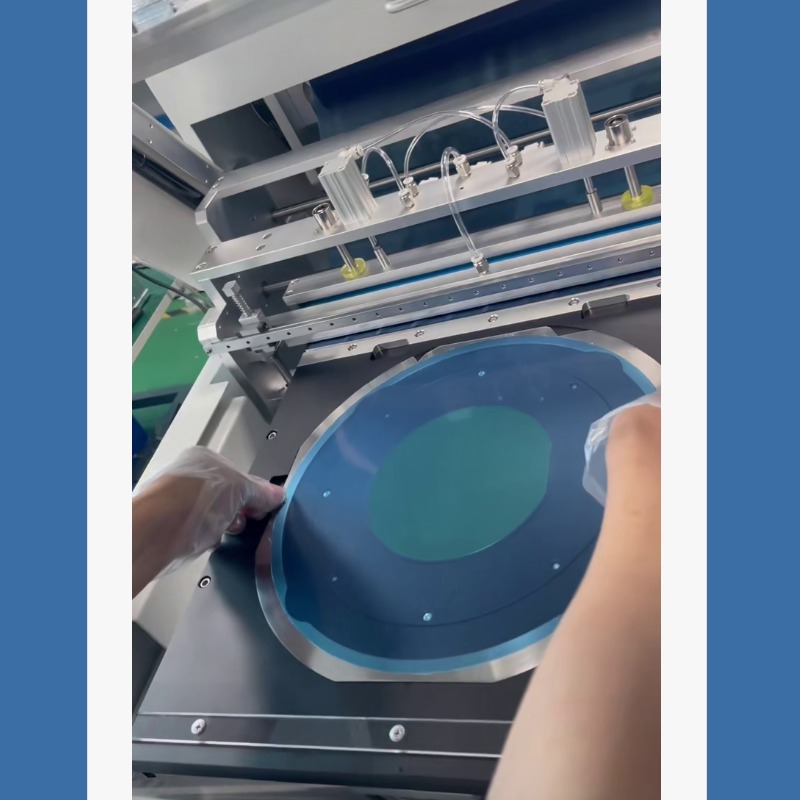

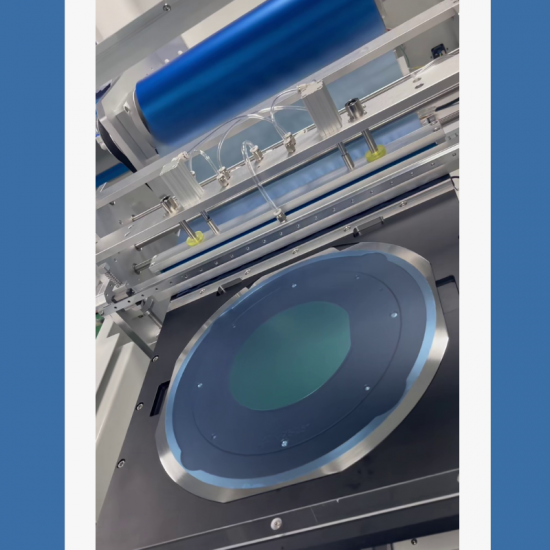

Semi Automatic Wafer Mounter DSXUV26-051 this model machine is for 10" Frame with 6"wafer,offcourse it is the same use for 8"wafer. Conduct us know more.
|
1、Machine Parameter Description |
|||
|
Model: |
DSXUV-26-051 |
Fixed Form: |
vac-sorb |
|
location mode : |
Scale Positioning |
Heating System: |
Heating Pad（0-120℃） |
|
Pressure: |
0.5-0.8Mpa |
Power: |
800W |
|
Machine Voltage: |
AC220V-250v CAN CHOOSE 11 0v AND OTHER |
Operate mode: |
semi-automatic |
Configuration & requirement
|
No. |
Item |
Specification |
Response |
| DETAIL | |||
|
1.1 |
Technology |
MOUNT |
Comply |
|
1.2 |
Machine type |
6&8inch Sic thin wafer mount |
Comply 8寸frame 250mm |
|
1.3 |
Film Application Function |
Supports single-layer films, double-layer films, and UV films. |
Comply |
|
1.4 |
Film Mode |
Automatic film wrapping, automatic film rolling |
Comply |
|
1.5 |
ESD system |
Ionized wind rod or ionized fan |
Comply |
|
1.6 |
product size |
Wafer size：6inch compatible 8 inch SIC wafer ：Ø150±0.5mm or 200±0.5mm, Flat length: 47.5+/-2.5mm thickness, ply ：≥120um Total thickness deviation TTV: ≤15um The warping condition is satisfied≤0-3mm |
Comply |
|
1.7 |
Frame Wafercuting system |
Using the ring-cutting process, the Wafer is separated from the Frame. The reserved thickness for the post-cut film (the difference between the film diameter and the Wafer diameter) can be set to a value greater than 0.1 mm. |
Comply |
|
1.8 |
Film application accuracy |
The dimensional tolerance of the product's peripheral edges relative to Ring Huan is <0.5 mm (ABCD tolerance), and its θ-angle positioning accuracy is <0.5. |
Comply Regarding the placement of wafers by personnel |
|
1.9 |
stability, stabilization, steadiness, constancy |
Continuous operation for 500 pieces with no quality abnormalities observed. |
Comply |
|
1.10 |
UPH |
≥60pcs/H |
Comply |
|
1.11 |
Air gap |
Full Fit |
Comply |
|
1.12 |
Film Application Effect |
No wrinkles, no bubbles, and no fringes. |
Comply |
|
1.13 |
Supports double-sided film application |
No scratches on the product surface |
Comply |
|
1.14 |
Heat the plate dish |
Heating function: Room temperature to 80°C ±3°C |
Comply |
|
1.15 |
Plate Material |
Microholes, under vacuum conditions of ≥80 Pa |
Comply |
|
1.16 |
Worktop Material |
Containing Teflon or a protective coating |
Comply |
|
1.17 |
Tympanotomy blade |
Lifetime ≥200 pcs |
Comply |
2.1All process Specifications should be based on 6 inch Si &SiC wafer
Tool must be able to handle substrate with the following specifications，good Si & SIC 6inch wafer handling and process performance.
6inch silicon carbide wafer substrate specifications 6 inch.
|
SiC wafer Size |
6〞(φ150.0mm) |
|
Diameter |
150.0mm ±0.25 |
|
Primary flat length |
47.5 mm±2.5 mm |
|
Secondary flat length |
Not applicable |
|
Primary flat orientation |
<11-20> ±5° |
|
Secondary flat orientation |
Not applicable |
|
Thickness range |
50~500μm |
|
Wafer Transmittance |
＞90% |
|
Total thickness deviationTTV Total Thickness Variation |
≤60um |
|
（site 10mm×10mm）LTV |
≤6 um |
|
Bow |
≤85um |
|
Warp |
≤300um |
DSXUV 12inch Semi-automatic Wafer Mounter Film Sticking Machine
This equipment (lamator) is mainly used for 12 inch Si wafer BG film coating. No burrs, no bubbles. The wafer type is dummy wafer. This semi-automatic film sticking machine is suitable for applying film to products such as wafers, semiconductors, ceramics, and glass. It is a device used for film coating processing, specifically designed to precisely adhere thin film materials to the surface of wafers. It combines the characteristics of manual operation and automatic control, providing higher film application accuracy and efficiency while maintaining operational convenience.
Semiconductor Double Film Wafer Chip Laminating Machine
Wafer Frame Film Mounter Machine can place UV tape and blue film at the same time for using.
Manual Wafer Laminating Machine Wafer Backgrinding Mounter 6 8 12 Inches
6/8/12 inches Manual Wafer Laminator series is a fast and efficient sticking film machine, special designed for wafer, glass, LED PCB, and ceramic cutting process.
DSXUV-Wafer-M8 8 Inches Manual UV Tape Wafer Mounter
Wafer Frame Film Mounter is a machine that fixes a wafer and a ring together through a blue film or UV film.
DSXUV-Wafer-M6 6 Inches Semiautomatic Wafer Mounter For Dicing UV Film Cutting
Wafer Tape Laminating Machine is a machine that fixes a wafer and a ring together through a blue film or UV film.
Customized Glass Filter Semiconductor BG Film QFN Lamination Equipment
DSXUV accept customized various glass material film laminating machine, various UV tape blue film BG film laminating systems.
