UV-LED Curing Machine Used for High Performance Electronic Components

2021-11-25 15:43:19

Today, with the continuous development of science and technology, the integration of semiconductor and electronic components is becoming higher and higher, and the requirements for UV LED Curing System Machine used in the packaging process of chips and electronic components are becoming higher and higher. DSXUV, as a UV LED curing system machine manufacture, can meet the needs of precision electronic components adhesive and LEDUV curing, can provide a series of mature products.

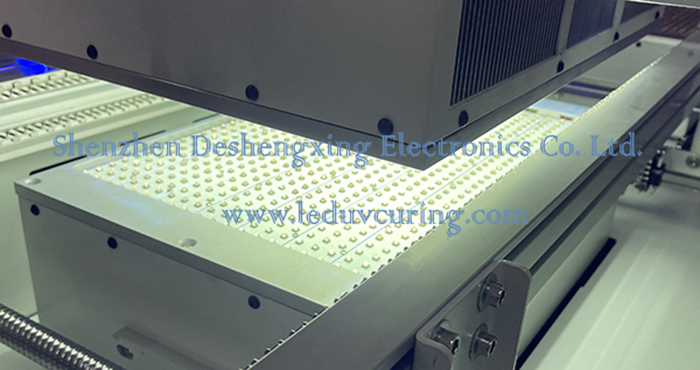

LED UV Light Curing Lamp Machine ULtraviolet LED Curing Conveyor

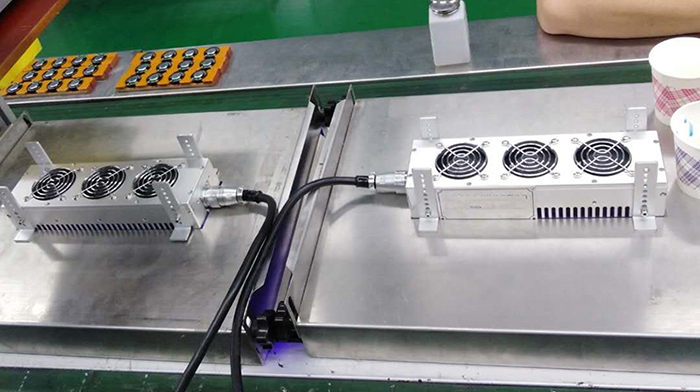

Double Side UV LED Curing Light Source System


The following requirements must be met :

1.The strength of UV LED curing machine is to be enough.

Generally speaking, electronic components are mass production. This kind of mass production requires high production efficiency. The higher intensity of the UV LED curing machine and the faster conveyor belt will greatly increase the productivity of a single device. DSXUV LED UV Curing Light Source uses UV LED light chip as the light source, the light intensity is adjustable, can meet the application of a variety of product processes, productivity has several times or even dozens of times of space for improvement.

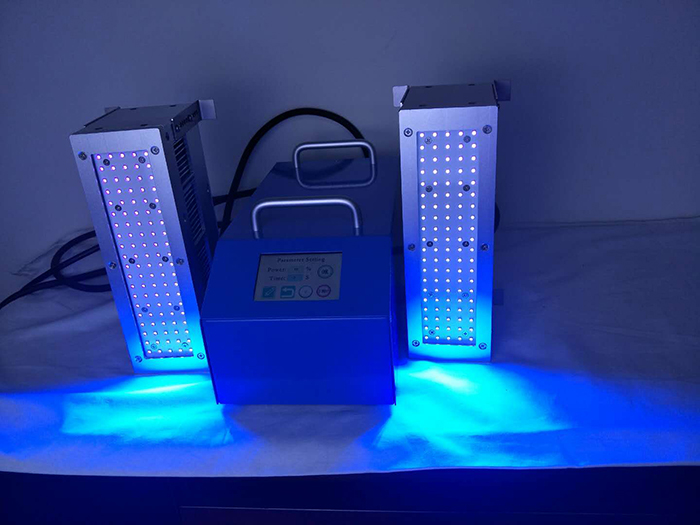

High Power UV LED Curing Lamp Systems Bonding Screen Drying Ink Coating


2.EMC electromagnetic radiation is low:

The higher the integration degree of chips and electronic components is, the higher the sensitivity degree to EMC is, and they can no longer withstand EMC interface emitted by some microwave excited ultraviolet lamps, which makes them have production quality risks. In this regard, DSXUV UV LED Light Curing Equipment as a cold light source, no infrared light, no thermal radiation and EMC interference, more than UV mercury lamp.

3.Heat dissipation of UV LED curing machine is good:

In the long time, high intensity curing work, the heat dissipation of UV LED Curing Lamp Systems is very important. Only the heat dissipation system designed by scientific calculation can guarantee the good operation of UV LED curing system machine.

4.UV LED Curing machine should be small:

High performance components are generally small in size, so the UV LED curing machine is also required to be small in size, which has no impact on other equipment in the production line. And electronic components production workshop environment requirements are very high, such as temperature, humidity and cleanliness. Compared with UV mercury lamp, the integrated design of DSXUV LED UV Light Curing Lamp Machine is more suitable for curing electronic components, and it is flexible and portable. However, UV mercury lamps usually require large distribution cabinet type power supply, fans and conveyor systems, requiring significant adjustments to the factory hardware environment, as well as noise and cleanliness.

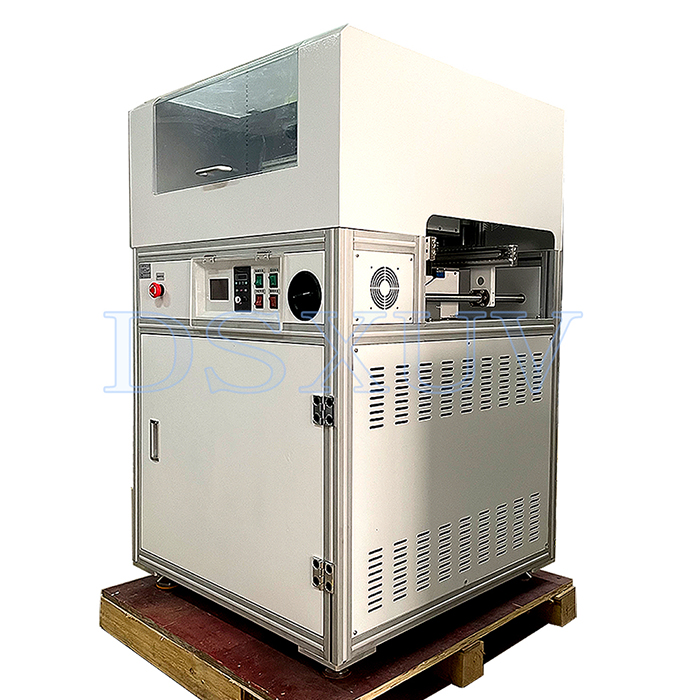

DSXUV UV LED Light Curing Machine Drying Glue Solidifying 3D Printing Ink
