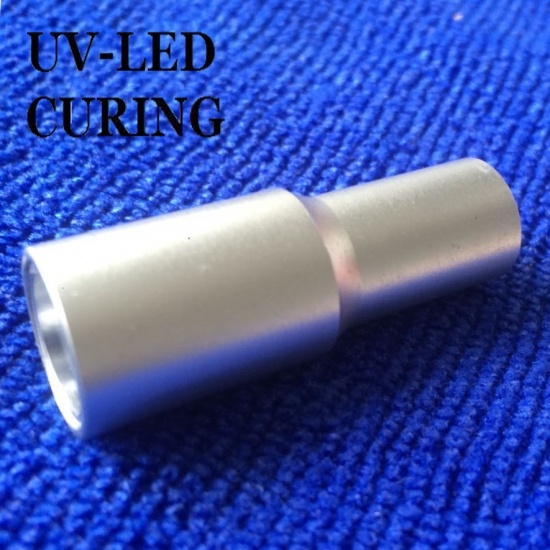

Standard LED Uniform Optical Lens for UV LED Spot Light Source UV Curing Equipment

Standard LED Uniform Optical Lens for UV LED Spot Light Source UV Curing Equipment

Standard LED Uniform Optical Lens for UV LED Spot Light Source UV Curing Equipment

Standard LED Uniform Optical Lens for UV LED Spot Light Source UV Curing Equipment

Standard LED Uniform Optical Lens for UV LED Spot Light Source UV Curing Equipment

LED Collimating Uniform Optical Lens is used for UV LED curing light sorce, special for UV point light source curing equipment.

model no. :
Uniform Light Lens
Brand:
DSXUV
port of dispatch :
Shenzhen
Payment :
T/T 100% Before Shipment
original region :
China

contact now

Product Details

Note : this type of uniform collimated optical lens is matched with our UV LED Spot Light Source Curing Equipment. If it is used for other LEDs, we do not guarantee that the effect will be the same as in the picture.

Parameter for LED Collimating UV Light Spot Lens :

Material :

Lens : quartz glass

Holder : aluminum alloy

Range : suitable for all LED, different LEDs effects will be different.

Recommended distance : using NICHIA LED for testing, at the height of 100mm, the spot area is 40mm

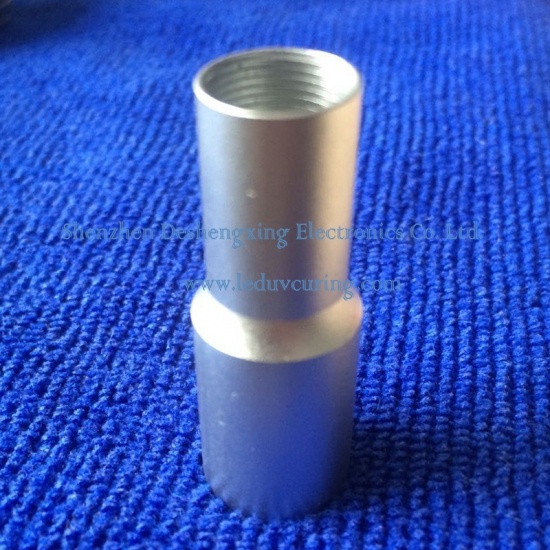

Size : L 46mm, bottom diameter 12mm, diameter of light outlet 15mm

Standard UV LED Spot Light Irradiation head UV LED Uniform Facula Lens

LED UVC Spot Curing Light Source Iddadiation Head UV Curing Facula Lens

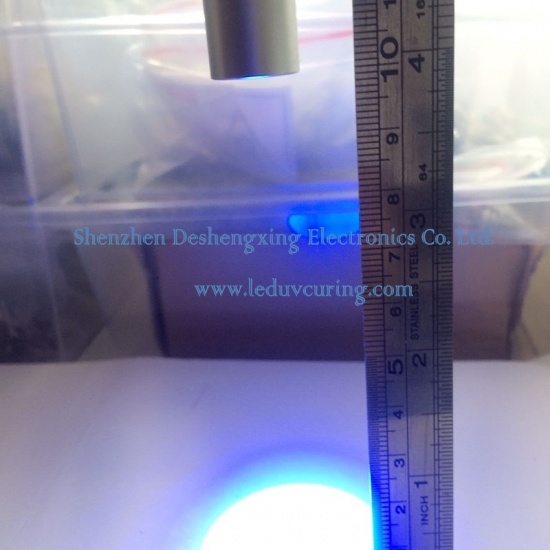

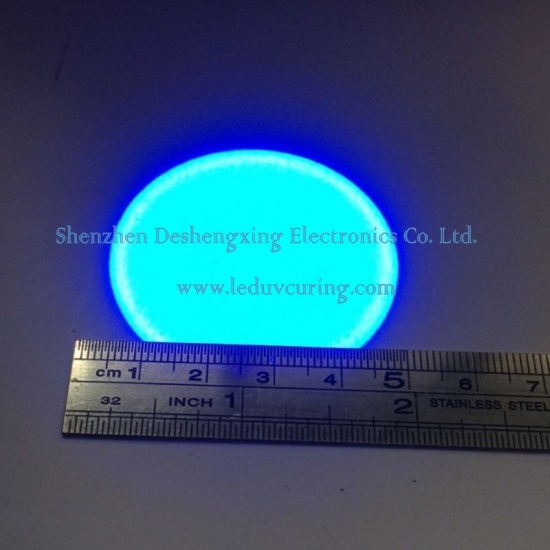

at the height 100mm, spot size 40mm, the effect is as below :

collimating optical fiber for UV LED curing machine

Standard Uniform UV Light Spot Lens for UV Point Light Source

Related Tags : Collimating LED UVC Spot Curing Light Source Iddadiation Head Optical Lens Uniform UV LED Facula Lens for UV LED Spot Light Source Collimating UV Light Spot Size of Irradiation Head Uniform UV LED Curing optical spot lens for UV Point Light Source Uniform UV Light Spot Lens for UV Curing Equipment
