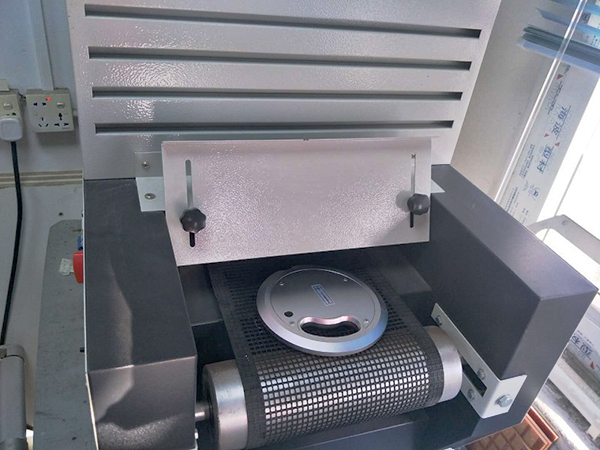

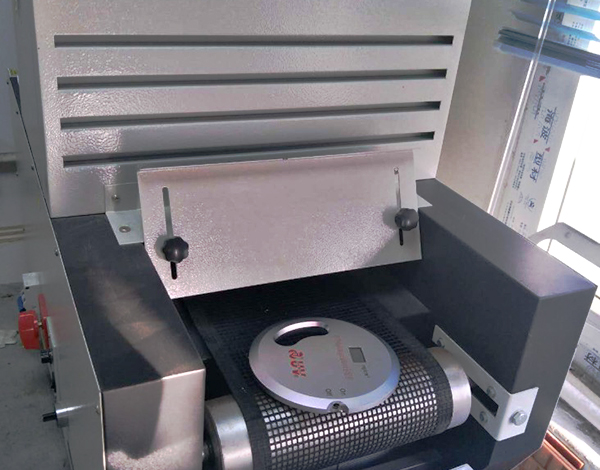

If you need to test is one of the traditional mesh belt conveyor of the structure of the UV light source system, box-type rotating or static solidification on the UV dryer, or a simple Ultraviolet curing device, and the space enough to place 140mm diameter specifications of the instrument. So, UV integrator 140 or 1401 UV Energy Radiometer all appropriate uses, and can meet your needs, in 250-410nm wavelength UV light energy tester. This band is also commonly used in the industry and can be tested in accordance with the same or cooperative standards. As a result of quantitative supply, so you choose the above two UV instrument investment is relatively economical, and the subsequent annual calibration expenditure is also very affordable and convenient.

If your UV production line is conveyor belt, multi-faceted UV curing or UV drying, this is more common in Ultraviolet Curing UV coating processes. Therefore, if you want to monitor the approximate amount of light energy, you can also use a disk type 140 or 1401 UV energy meter. If your work-piece (usually solid, curved, polyhedron, or may have a very special shape, such as a bump, a corner, etc.) has a very complex shape, and you would like to accurately measure the UV light energy at different positions of the work-piece to meet your process requirements. Then, it is recommended that you choose the split type, single or multi-probe ultraviolet energy meter. The cost of this ultraviolet light tester is slightly higher than that of the disk UV detector, but it can ensure your process effect very well.

Online measurement : if your process production conditions have reached a fairly high precision requirements, hope to be able constantly online monitoring and intuitive access to relevant information from the display screen, you can choose a supporting sensor and monitoring display instrument UV monitoring instrument, this general suitable for LCD, acrylic, precision electronic components and other applications.

The above three types of UV energy tester / joules can basically meet your daily UV testing needs. The general process is mainly to master the measurement of one to three indicators, including UV energy value, light intensity and temperature, which can be met by our products.

The following suggestions :

Equipped with : UV energy detector / joule meter type UV integrator 140 / 1401, split single channel or multi-channel UV energy tester.

Synchronous testing of light intensity and energy :

Equipped with : dual function UV energy meter / joule meter, is a split structure, the relevant information has not been published on the website.

Online UV testing :

UV dedicated online monitor, this model can be customized for you.

Online temperature test :

Can use the general sensor temperature tester on the market, the separate purchase is nor economical.

Common brands of UV energy meters in the market :

America : EIT

Canada : EXFO

Japan : USHIO，ORC

Germany : KUHNAST, HONLE, UV DESING UV , BELTRON UV, UV-RADCOL

China : RUNWING 140, RUNWING 140

Why do different brands of UV energy meter / joule meters have different measurement values under the same test conditions?

Reasons :

First of all, the original calibration standards are different for different brands of UV energy Detector. In fact, if id standards no to judge a certain brand subjectively through this situation, and other brands are not appropriate.

Secondly, different brands or even the same brands may have different readings even under the same test conditions due to the different UV wavelength of their sensors.

Then, before comparison, be sure that the instrument you are using is still within the valid range of the calibration and has not been damaged.

Finally, if you still have doubts, please contact us in time, as a professional manufacturer, our service will be more comprehensive and in place.
