High Definition UV LED Quartz Glass 53 Degree Lens 48 Degree Lens for 5050 6060 7070 Lights

High Definition UV LED Quartz Glass 53 Degree Lens 48 Degree Lens for 5050 6060 7070 Lights

Hemispheric UV LED Quartz Glass Lens is with flat window LED matching 53°lens and 48°lens.

model no. :
UV LED Quartz Glass
Brand:
DSXUV
port of dispatch :
Shenzhen
Payment :
T/T 100% Before Shipment
original region :
China

contact now

Product Details

Hemispheric UV LED Focusing Lens is with flat window LED matching 53°lens and 48°lens. 53°48°UV LED quartz glass lens fits 5050 6060 7070 6868 flat window lights with lens.

Applications of Hemispherical UV LED Condenser Lens :

LED can be packaged with quartz glass lens to improve LED illumination, and no loss of UV penetration, quartz glass transmittance up to 99.9%. compared with the traditional silica lens, quartz glass is not easy to yellow and fall off, so the LED performance is more stable, longer service life.

LED Quartz Glass

Specifications for 48° 53° Quartz Glass UV LED Focus Lens :

Wavelength	240-3000nm	Cross the center of the lens and the center line of the outer circle : + - 0.015
Material	JDS-2 quartz	Aperture <5 local aperture 0.5
Focal length error	+ - 2%@365nm	Surface	Grade IV
Outside diameter tolerance	+ - 0.05	Grade of material	Second level
Thickness tolerance	+ - 0.05	Amount of light passing through a lens : >90%
Coating	None

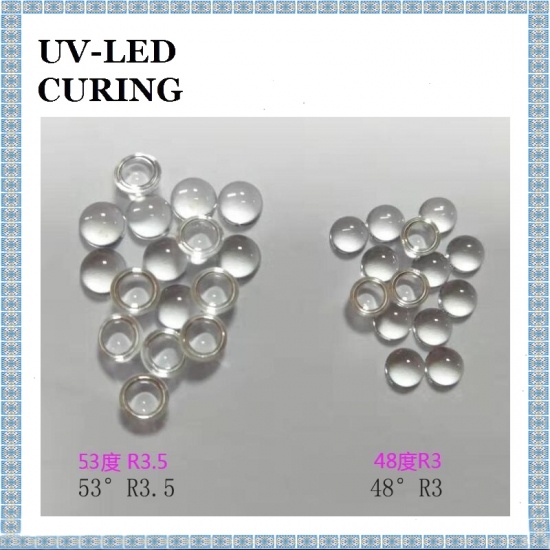

Radius of curvature	Focal distance	Degree	Center Thickness of the lens	Angle of visibility
R3	6.54	48°	3 + - 0.05	48°
R3.5	7.63	52°	3.5 + - 0.05	53°

LED Quartz Lens

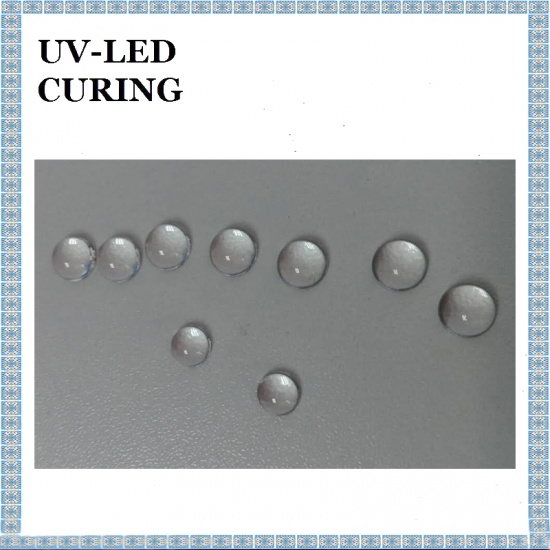

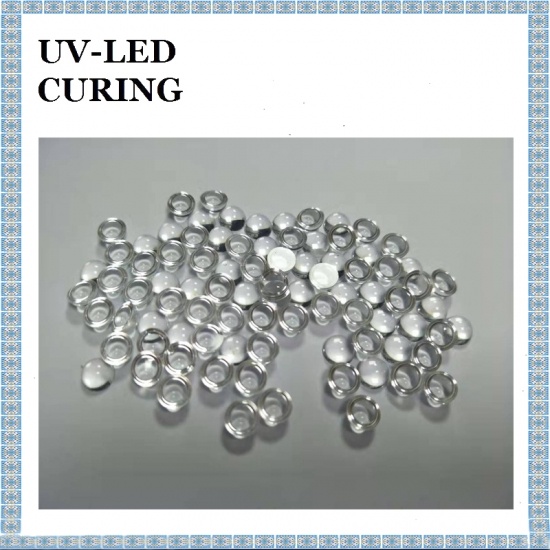

The case of Quartz Glass Material Focused UV LED Hemispherical Lens :

UV LED Hemispherical Lens Suppliers

Hemispherical LED Lens Distributors
