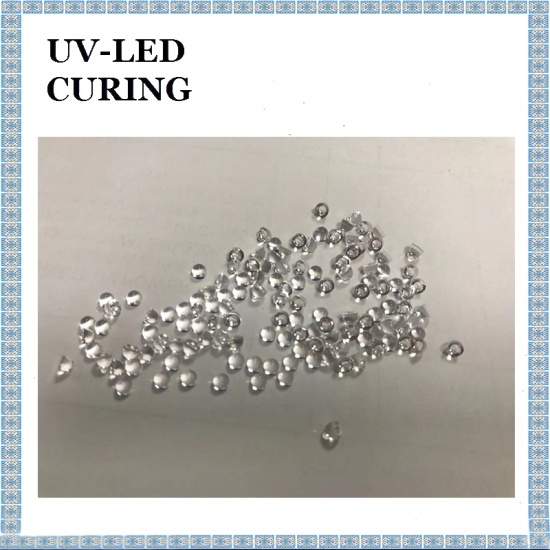

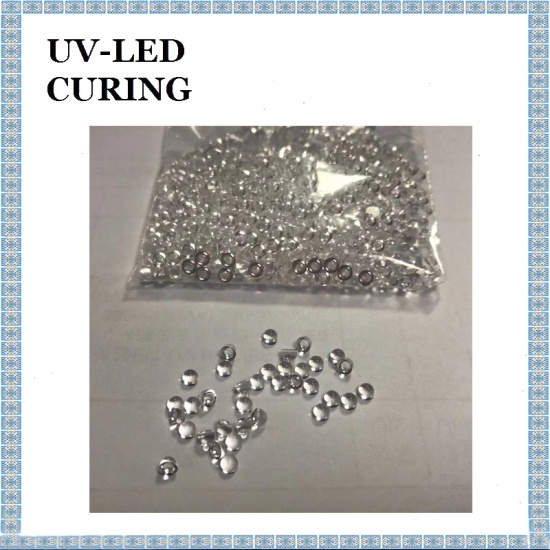

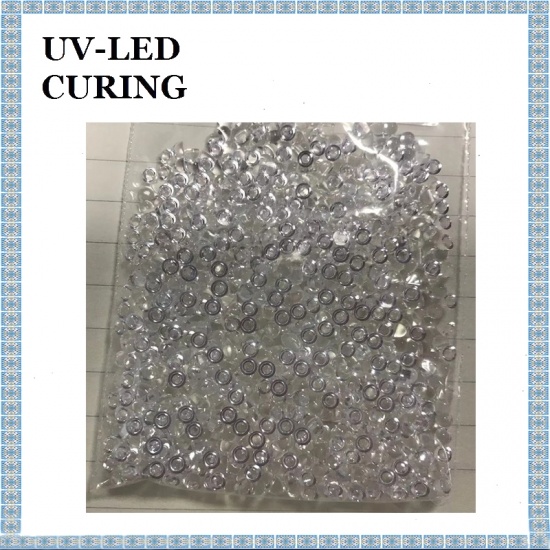

30 Degree Beam Angle LED Quartz Glass Lens for 3535 Light Beads Encapsulation

Diameter 2.8mm Optical Glass Lens for 3535 LED Light Beads Encapsulation

Parameters of Planoconvex Lens LED Focus Lens :

1.size : D2.8*H2.3   diameterΦ2.8mm , height 2.3mm

2.LED lens at an Angle of 30°

3.Manufacturer : Shenzhen Deshengxing Electronics Co., Ltd.

4.Type : DSXUVLENS30

5.Center thickness tolerance of lens : ±0.05mm

6.Outside diameter tolerance : ±0.05mm

7.Material : quartz glass

8.Light transmittance : ≥98%, high temperature resistance above 300℃

9.Degree of finish : American-Standard 60/40

10.The lens edge has polished rounded corners of R0.1-R0.2 to prevent lens damage during the packaging process.

Advantages of Plano-Convex Singlet Lenses :

Instead of the past silica and PC packaging, in line with the market trend, the use of quartz of optical glass materials. Made by optical cold processing, the product has long service life and high transmittance.
