1.Ultraviolet disinfection lamp - low pressure mercury lamp
- ultraviolet radiation efficiency : conversion efficiency of input electric power to UV sterilization effective radiation (%)
(range of low pressure mercury lamp below 65W is 10~23%)
- ultraviolet irradiance : UV germicidal effective radiation of per unit area (uW/cm2) (in 1m distance)
- ultraviolet flux maintenance rate and lifetime : attenuation of UV germicidal effective radiation with time
- ozone yield : the ratio of the amount of ozone produced per unit time to the power of the lamp (g/kw·h)
Irradiance : uW/cm2
Sterilization dose : uJ/cm2 = uW/cm2
Standard power range (W) |
UV Radiation Efficiency of Lamps |
||
Double-ended lamp |
Single-ended lamp |
Self-ballasted lamp |
|
<9 |
12 |
12 |
10.2 |
9~17 |
18 |
16 |
13.6 |
>=18 |
23 |
20 |
17 |
The values in Table 1 are double-tube parameters, and the data of four-tube, multi-tube, square and ring lamps are assessed according to 90% of the values specified in the table.
Standard Power / W |
4 |
6 |
8 |
13 |
15 |
18 |
30 |
36 |
No less than 93% of the rated value |
Irradiance of double-ended UV lamp |
11 |
17 |
22 |
35 |
50 |
62 |
100 |
135 |
Standard Power / W |
7 |
9 |
11 |
18 |
24 |
36 |
55 (TS) |
No less than 93% of the rated value |
Irradiance of single-ended UV lamp |
18 |
28 |
40 |
52 |
100 |
150 |
185 |
|
Note : The median values in Table 2 and Table 3 are the parameters of two-pipe lamps, while the data of four-pipe, multi-pipe, square and ring lamps are to be determined. |
Source : GB/T 19258-2012 UV Sterilization Lamp
Rating of single-ended UV lamp : 24W : 94 μW/c㎡, 36W : 147 μW/c㎡, 55W : 170 μW/c㎡ (source : GB 28235-2011 Safety and Hygiene standards of UV air sterilizers)
Ordinary straight line low pressure mercury UV disinfection lamp : >30W : ≥90μW/c㎡, >20W : ≥60μW/c㎡, 15W : ≥20μW/cm2 (source : Technical Specification for Disinfection)
High intensity UV disinfection lamp : 30W : >170μW/c㎡, 11W : >40μW/c㎡
Ordinary straight line low pressure mercury UV disinfection lamp : (30W) : ≥70μW/c㎡
High intensity UV disinfection lamp : ≥200μW/c㎡ (source : GB 15981-1995 evaluation method and standard of disinfection and sterilization effect)
- ultraviolet flux maintenance rate and lifetime : attenuation of UV germicidal effective radiation with time
Retention rate of 2000 hours ≥85 %
Average life is not less than 5000h, and the retention rate at the end of life is ≥65 % (source: GB/T 19258-2012 UV Sterilization Lamp)
The illuminance of a medium UV lamp (30W) shall be ≥ 70 μW/c㎡ (source : GB 15928-2012 Hospital Disinfection Health Standard)
Ultraviolet light (≥30W) irradiance reduced by 70 μW/cm2 for ≥1000h
Ultraviolet light (<30W) radiation reduced by 70% of the initial value for ≥1000h (source : Technical Specification for Disinfection)
ozone yield : the ratio of the amount of ozone produced per unit time to the power of the lamp (g/kw·h)
The initial ozone production rate of an ozone-free lamp should not be higher than 50mg/KW· h (source : GB/T 19258-2012 UV Sterilization Lamp)
Ozone production <1mg/h (source : Technical Specification for Disinfection)
The ozone concentration produced by low ozone UV lamp should not exceed 0.3 mg/m³
The ozone production disinfection device works in an environment where the ozone concentrate is < 0.16 mg/m³ (source : GB 15928-2012 Hospital Disinfection Health Standard)
Others : the average maximum allowable ozone concentration for 1h is 0.1 mg/m³ (source : GB/T 18202-2000 Health Standard for Ozone in Indoor Air)
2.UV air sterilizer : cabinet / hanging / mobile : low ozone UV lamp
Ultraviolet disinfection (sterilization) lamp index requirements
Ultraviolet leakage : no more than 5 μW/c㎡ measured at 30cm
Ozone leakage : the average maximum allowable ozone concentration for 1h is 0.1 mg/m³
Circulating air volume : not less than 10 times the applicable volume.
Applicable volume : not less than 30m3
(source : GB 28235-2011 Safety and hygiene standard for ultraviolet air sterilizers)

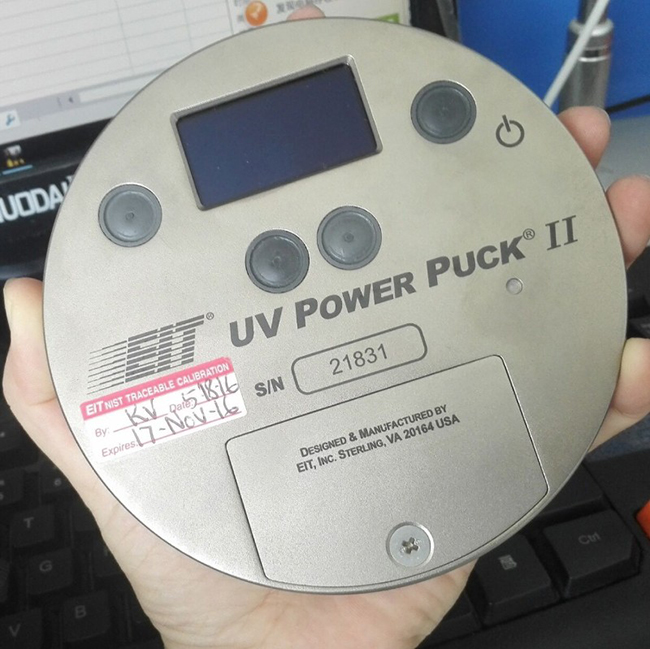

About the ultraviolet ray energy value and illumination measurement may choose the professional ultraviolet ray examination instrument.
