Microporous table, Teflon Surface, Small Size, Roller Pressure, Multifilm Application, No particles, No fragments.
model no. :
DSXUV-WM6Brand:
DSXUVColor :
Whiteport of dispatch :
ShenzhenPayment :
100% T/T before shipmentoriginal region :
ChinaLead Time :
15days
Advantage:
1, Heated and elastic film sticking table can be used to stick products of different thicknesses
2, The pressure of the film roller can be adjusted, making it easy to cut and organize
3, Teflon coated Chuck ensures smooth film pulling
4, Vacuum adsorption system for tighter product adhesion
5, Micro porous design tray with vacuum adsorption function
6, Ensure without bubbles, residual film, curled edges, or wrinkles
Power: 500W Air pressure: 0.5~0.8Mpa
Weight: 70KG Size: 1022*450*342mm
Membrane type: blue film or UV film
Heating temperature of the table: 0~65
Film pulling method: Manual
Film application method: Manual
Film cutting method: Manual
Wafer thickness: 100-200um
Wafer size: 6inch(you can choose 8inch 12incn or customized)
WPH: >60pcs

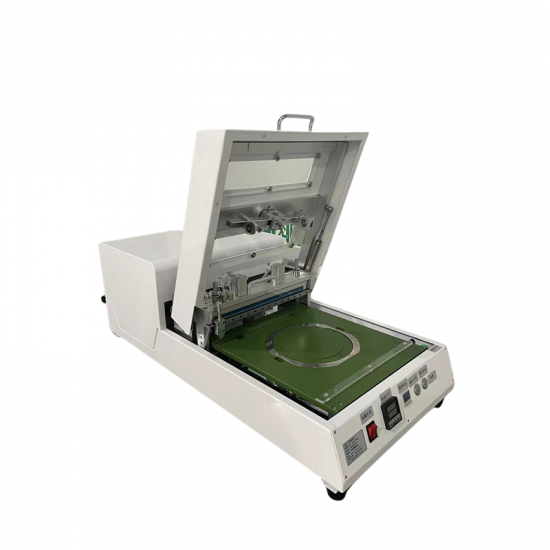

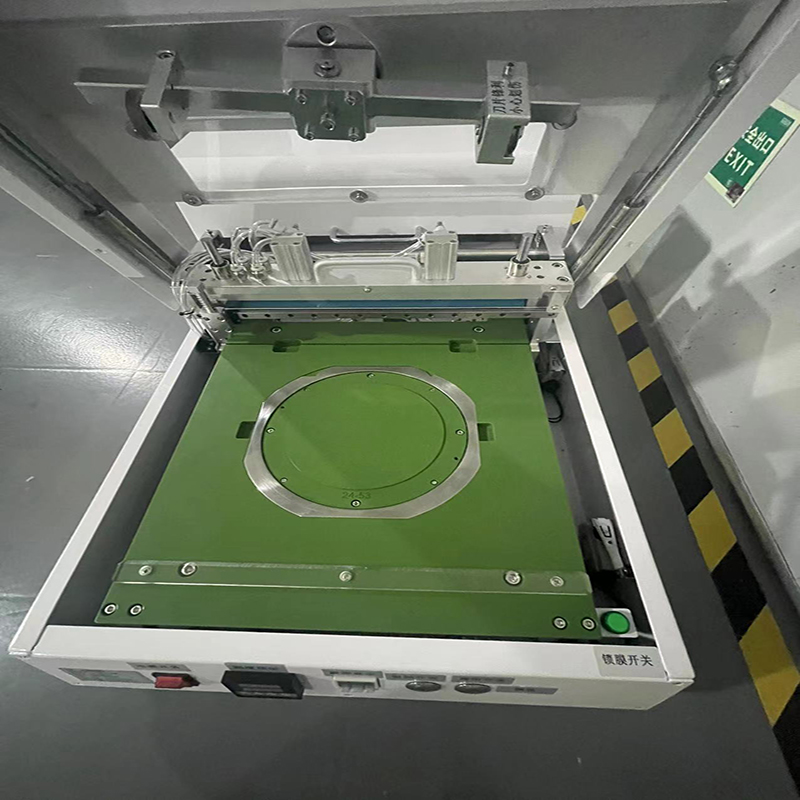

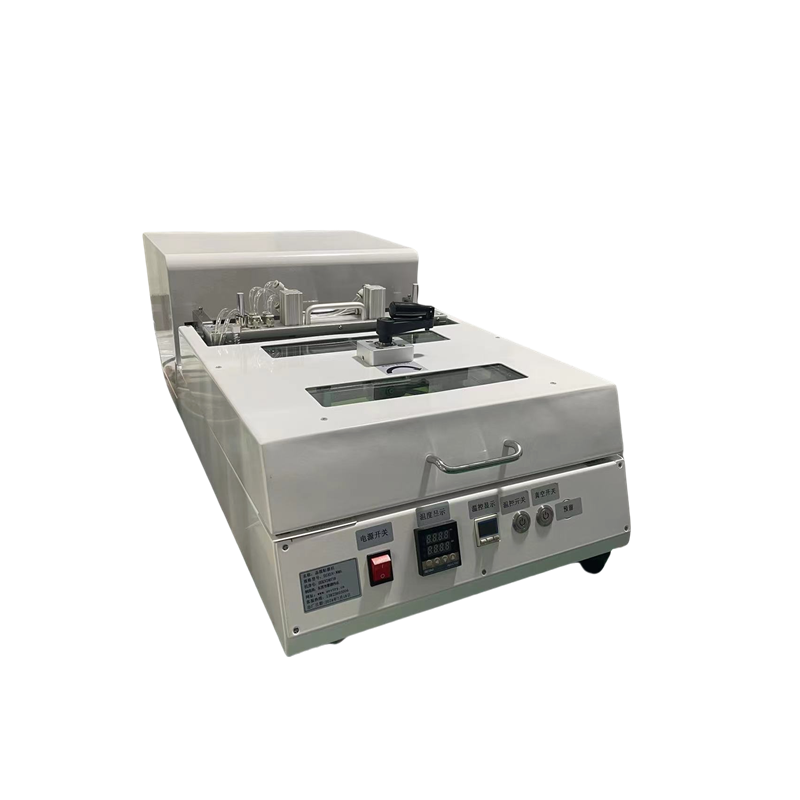

DSXUV 12inch Semi-automatic Wafer Mounter Film Sticking Machine

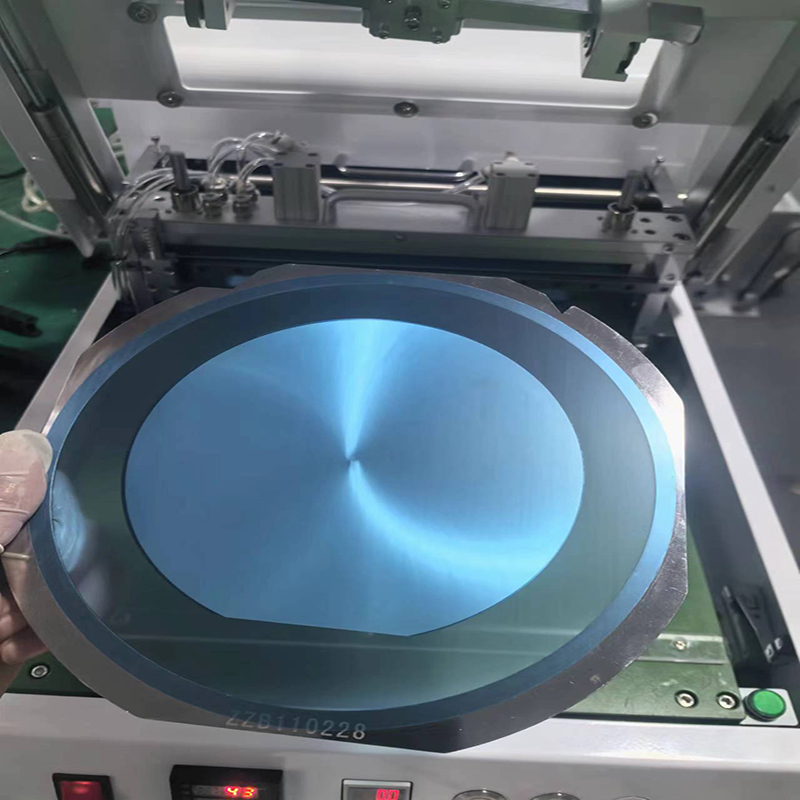

This equipment (lamator) is mainly used for 12 inch Si wafer BG film coating. No burrs, no bubbles. The wafer type is dummy wafer. This semi-automatic film sticking machine is suitable for applying film to products such as wafers, semiconductors, ceramics, and glass. It is a device used for film coating processing, specifically designed to precisely adhere thin film materials to the surface of wafers. It combines the characteristics of manual operation and automatic control, providing higher film application accuracy and efficiency while maintaining operational convenience.
Semiconductor Double Film Wafer Chip Laminating Machine
Wafer Frame Film Mounter Machine can place UV tape and blue film at the same time for using.
Manual Wafer Laminating Machine Wafer Backgrinding Mounter 6 8 12 Inches
6/8/12 inches Manual Wafer Laminator series is a fast and efficient sticking film machine, special designed for wafer, glass, LED PCB, and ceramic cutting process.
DSXUV-Wafer-M8 8 Inches Manual UV Tape Wafer Mounter
Wafer Frame Film Mounter is a machine that fixes a wafer and a ring together through a blue film or UV film.
DSXUV-Wafer-M6 6 Inches Semiautomatic Wafer Mounter For Dicing UV Film Cutting
Wafer Tape Laminating Machine is a machine that fixes a wafer and a ring together through a blue film or UV film.
Customized Glass Filter Semiconductor BG Film QFN Lamination Equipment
DSXUV accept customized various glass material film laminating machine, various UV tape blue film BG film laminating systems.
