Parallel 405nm UV Light Source Module Lens is widely used in the field of 3D printing
model no. :
3D Printer UV Curing LampBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% before shipmentoriginal region :
China13.3 inches 405nm UV LED Curing Module is designed for aspheric surface, ultra-precision machining, processing accuracy of lens than 1um, high transmittance, UV resistance, the product is widely used in the field of 3D printing.
Parameters :
Name: 3D Printer Complex Lens UV Light Source
Power of UV LED: 3W/pcs, 7*13=91pcs,
Total Power: 91*3=273W
Wavelength: 405nm, customized
Angle: collimation: 3.5 degrees
Uniformity: 90%
Material: PMMA
Luminousness: 93%

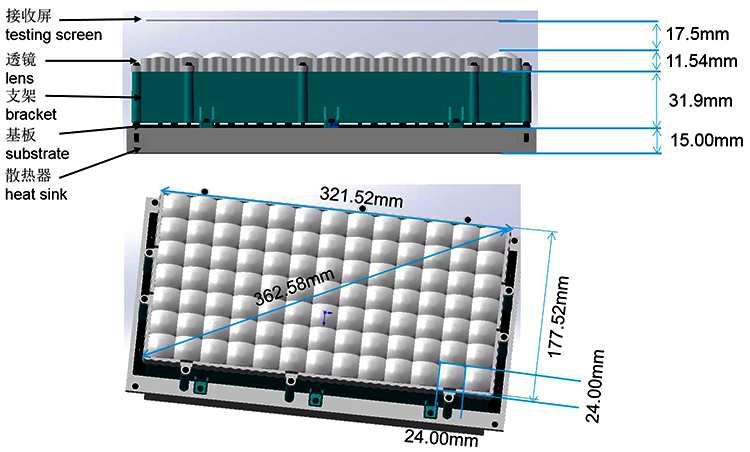

Outside Dimension: 312*168mm
Introduction of parallel UV light:
1. Parallel light source is normally used for high precision measurements
2. Parallel light has a very high contrast at the edge.
3. It reduces diffuse reflection, which is good for image boundary recognition
Other:
Product is not suitable to use in following conditions;
—-Direct or indirect wet / damp conditions, such as rain, etc;
—-in contact with sea water and erosive materials;
—-Exposed to corrosive gases (e.g., Cl2, H2S, NH3, SOx, NOx, etc.);
—-Exposed to dust, liquids or oils;
