12-inch Wafer Nitrogen UV Curing Box Ceramic Substrate LED Chip UV Curing Machine


LED Chip Packaging Industry Nitrogen Curing Box, Fast and Uniform Curing of UV Glue, 5 Seconds Curing, Leaving No Residual Adhesive.


  • model no. :

    DSXUV-Tapecuring12
  • Brand:

    DSXUV
  • Color :

    White
  • port of dispatch :

    Shenzhen
  • Payment :

    100% T/T before shipment
  • original region :

    China
  • Lead Time :

    10days
Product Details

Our Company is a Factory That Develops and Produces Our Own Products, with a Certain Degree of Quality Control and Price Advantage. We Have Been Focusing On This Industry for 10 Years.

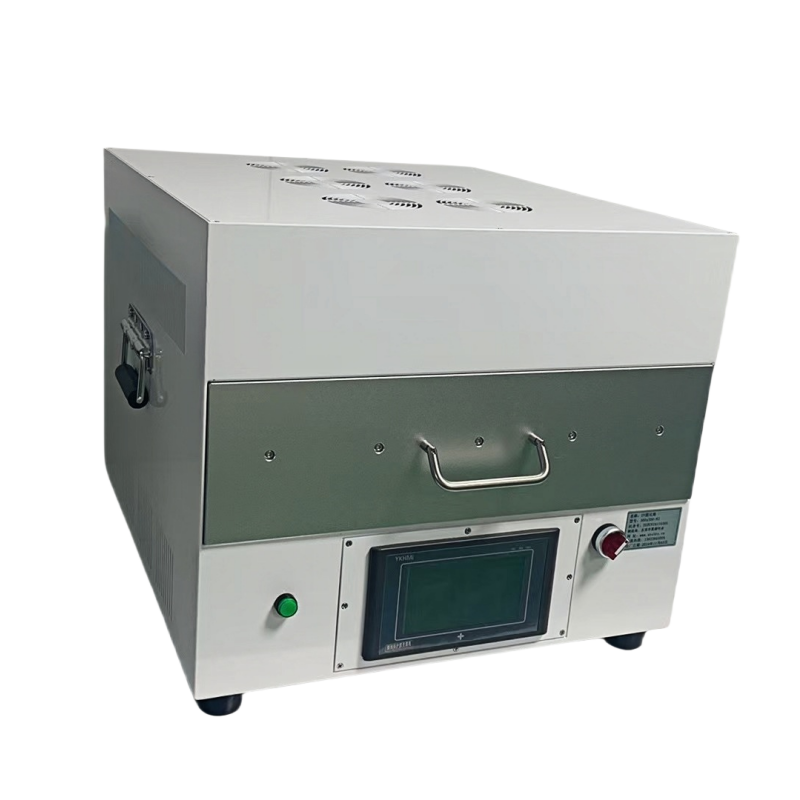

300x300mm 12-inch LED Nitrogen UV Curing Box, Wafer Nitrogen UV Curing System


Project

Technical Requirement

voltage

110-220V

Solidified Type

Drawer

Control Mode

Touch screen/button/PLC

Adjustable Range of Irradiation Power

10% -100% Adjustable

Illumination Mode


Manual: Always On After Startup

Automatic: Set the Countdown Time for Irradiation (0.1-999.9) Seconds


Nitrogen Aeration

Can Control Inflation Flow Rate and Time

Cooling Method

Air Cooling

Curing Room Temperature

<60

Wavelength Range

365nm+-5nm

Curing Area

300x300mm

Irradiation Distance

The Focal Length is The Most Uniform, and The Illumination Refers to The Focal Length

Irradiation Strength

>=200mW/cm2

Illumination Direction

From Top to Bottom

Equipment Illumination Light leak

No Light Leakage During Solidification

Curing Area

300x300mm

Uniformity

90%

UV Curing System

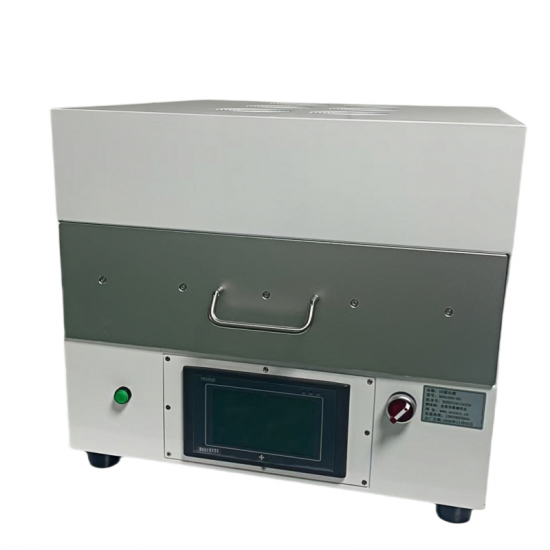

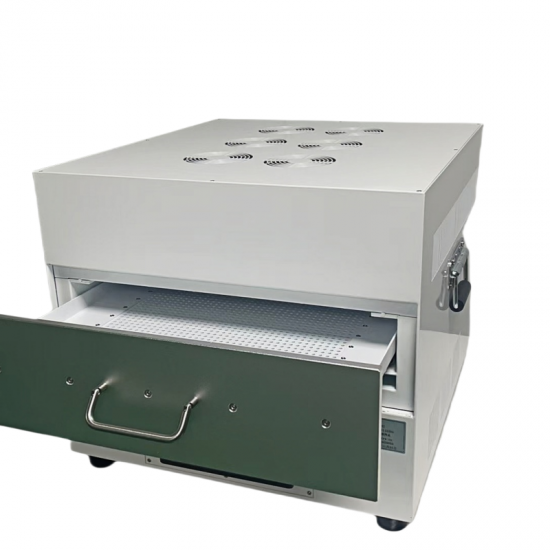

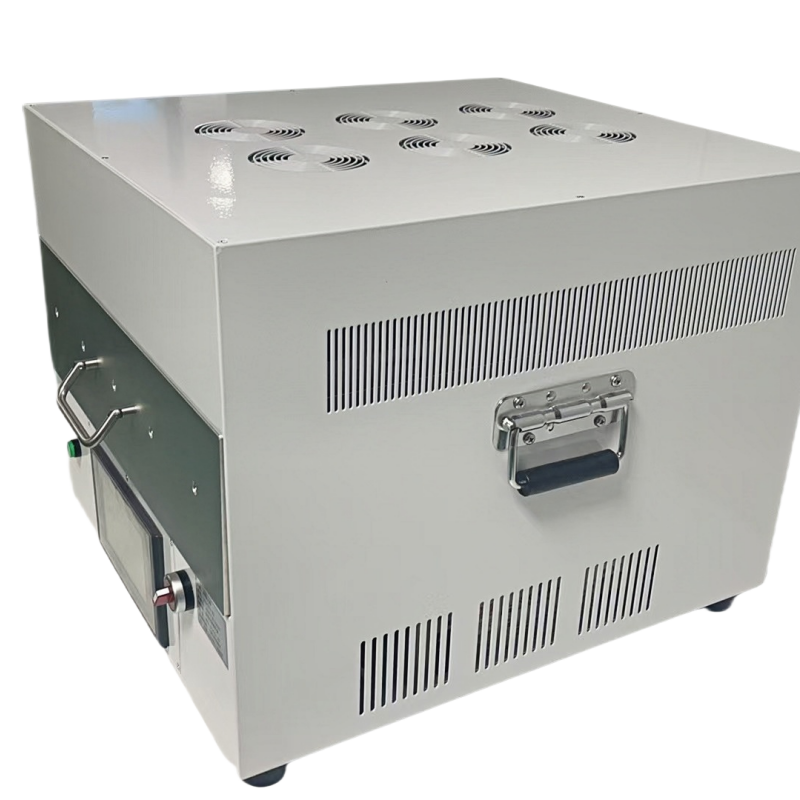

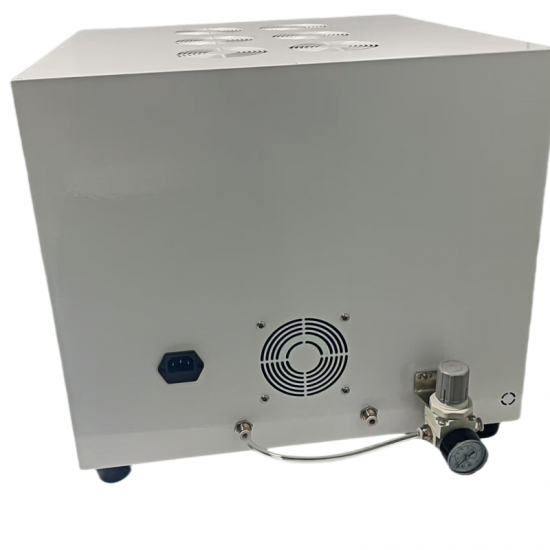

UV Curing Box


Package Information:

Size:L616*W581*H573mm

Weight:55kg

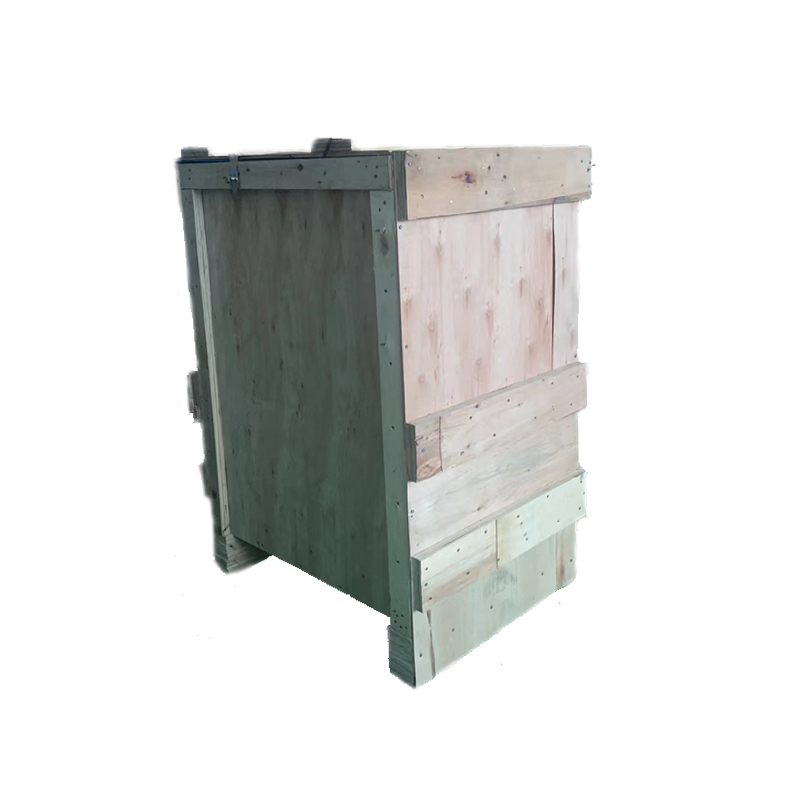

UV Curing system package
