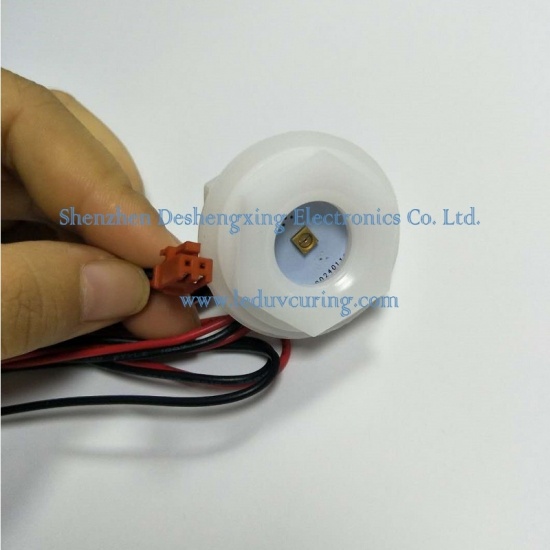

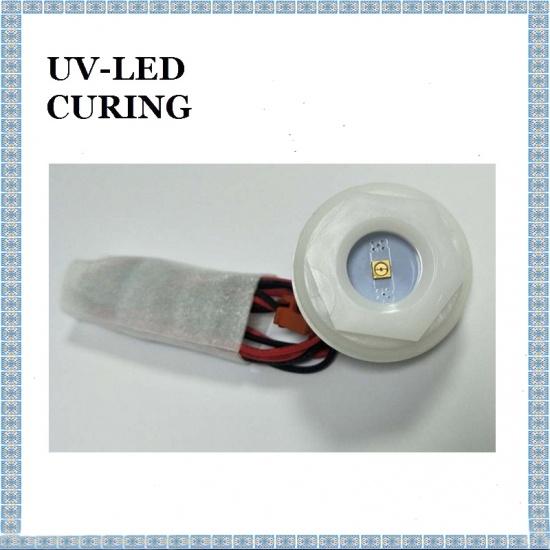

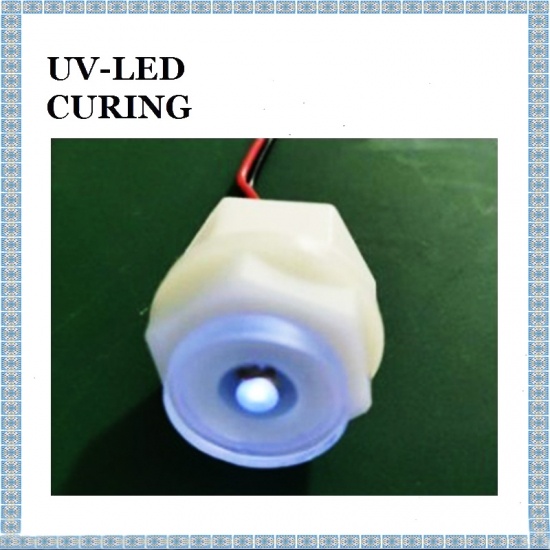

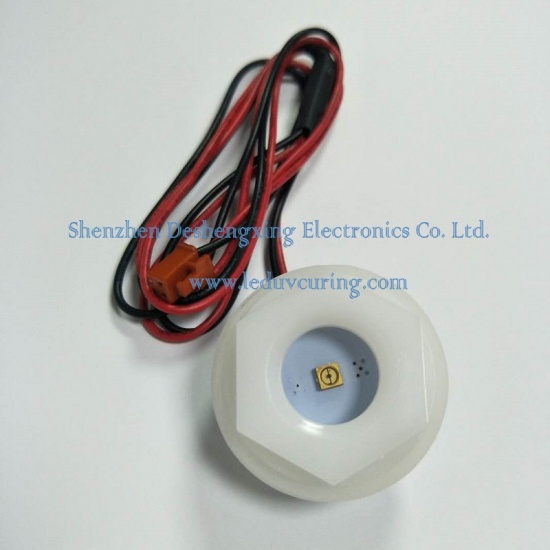

DC24V XH2.54 2P Terminal Static Water Ultraviolet Sterilizer Lamp Module Water Tank Sterilization Light for Water Disinfection

275nm 280nm Germicidal Deep UV LED Sterilization for Water Disinfection UVC LED is suitable for all kinds of device with static water storage cistern.

Specification of Antiseptic UVC UV Germicidal Lamp for Static Water Disinfection :

Constant driver : 24V

Lead specification : UL2468 24AWG parallel wire, the length of wire is 310mm, XHB2.54 terminal head

Terminal Specification : 2PIN

Water-proof of grade : front of the module (quartz window surface) IP68 dust-proof and waterproof (without terminal)

Operating temperature : -25~50℃

Parameter of Waterproof Deep UVC Ultraviolet Bactericidal Light :

 Type : M280-BL001

Input voltage : 24V

Operating current : 40mA

Optical Power : 2-4mW

Lighting Angle : 120°

Insulation and voltage resistance : DC500V +2Vin / 1 min

Test method of 280nm Sterilized UVC UV LED Water Treatment Sterilizer :

UV Luminous Power test : using the integrating sphere, the output UV luminous power of the test module is the specified value.

The test of UV wavelength range : 270-285nm

Insulation voltage test : AC 1500V and 50Hz voltage are applied between the live part and the housing, the voltage is maintained for 1 min without breakdown.

High and low temperature test : the product can work reliably in the range of -25~50℃, and it can be stored reliably in the range of -50~85℃.

UVC LED static water sterilization module is integrated at the bottom of water purifier (the optical power depends on the volume of water tank), which can be lit for a long time or intermittently to inhibit the bacterial growth of the whole tank.

Product use precautions of Disinfectant Deep UVC UV LED Light Sterilizer for Water :

1.The product must be handled with care, it is strictly forbidden to fall, and it is strictly forbidden to touch the product, especially the light-emitting surface of the lamp.

2.Do not use a power supply that does not meet the requirements for driving.

3.The product should not be lit for a long time in a high temperature and closed environment in an environment within the rated temperature range.

4.Do not expose the module directly to high humidity. It should be waterproof and moisture-proof.

5.The light-transmissive window on the light-emitting side of the product should be made of high-purity quartz glass plate, which can effectively pass 270~285 nm ultraviolet light.

Important safety tips of Static Water Tank UVC UV LED Sterilization Module :

1.This product produces deep ultraviolet rays when energized. This kind of ultraviolet light can cause damage to human skin and eyes, and should be avoided without direct protection. The human body is directly exposed to deep ultraviolet rays.

2.It is strictly forbidden to look directly at the deep ultraviolet light emitted by this product.
