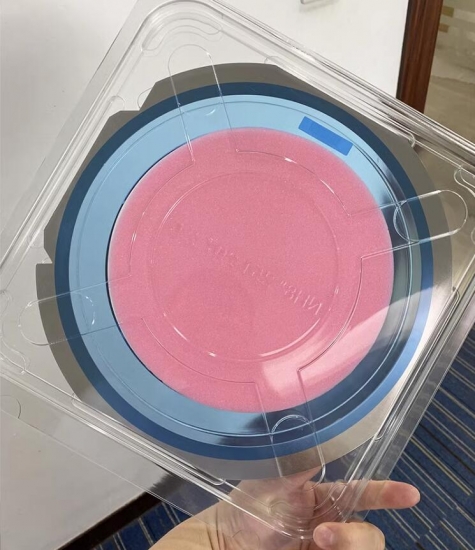

8inch Single Wafer Frame Shippers

Single flex frame shippers design for 4" (100mm), 5" (125mm), 6" (150mm), 8" (200mm) and 12" (300mm) wafers.

Our film frame shippers provide a safe and effective way to ship and store your wafers, or singulated die, mounted to wafer film frames. Do you have special applications, do you want to ship "diced" or thinned GaAs wafers, or store or ship wafers mounted to wafer film frame? We offer wafer film frame shippers for 150, 200 and 300 mm wafer film frame applications from stock. No need to bear freight cost return heavy metal flex frame and no need for cleaning metal flex frames before re-use.

SIZE

For the 6-inch packaging box:

Exterior dimensions: 255*250

Corresponding plastic ring dimensions:

Outer diameter 228mm, inner diameter 194mm, pitch diameter 212mm, thickness 1.2mm.

For the 8-inch packaging box:

Exterior dimensions: 322*317*20mm

Corresponding plastic ring dimensions: Outer diameter 296mm, inner diameter 250mm, pitch diameter 276mm, thickness 1.2mm.
