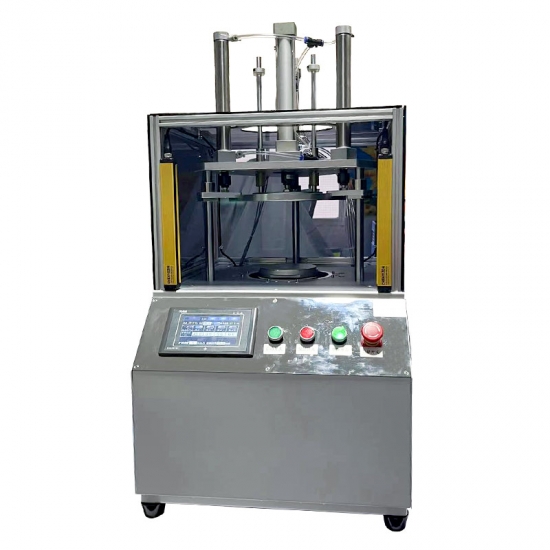

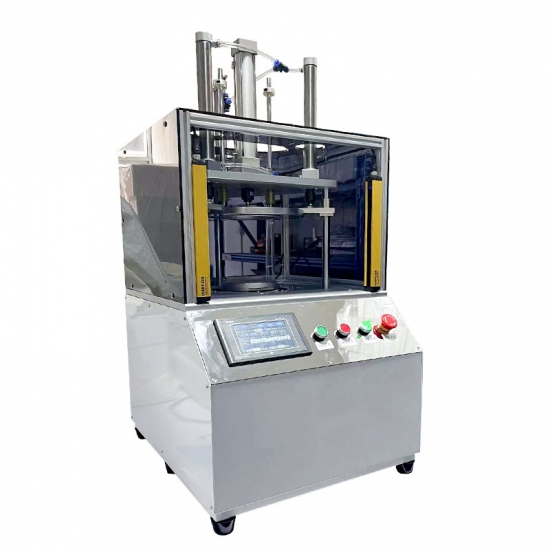

6inch Semiautomatic Wafer Expander for UV Tape Blue Film Expansion

6inch Semiautomatic Wafer Expander for UV Tape Blue Film Expansion

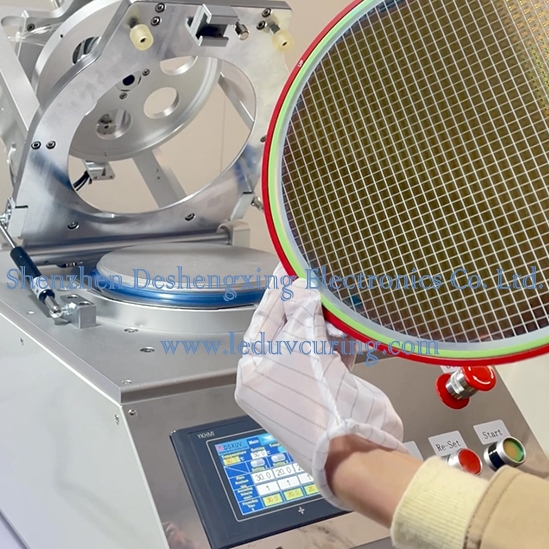

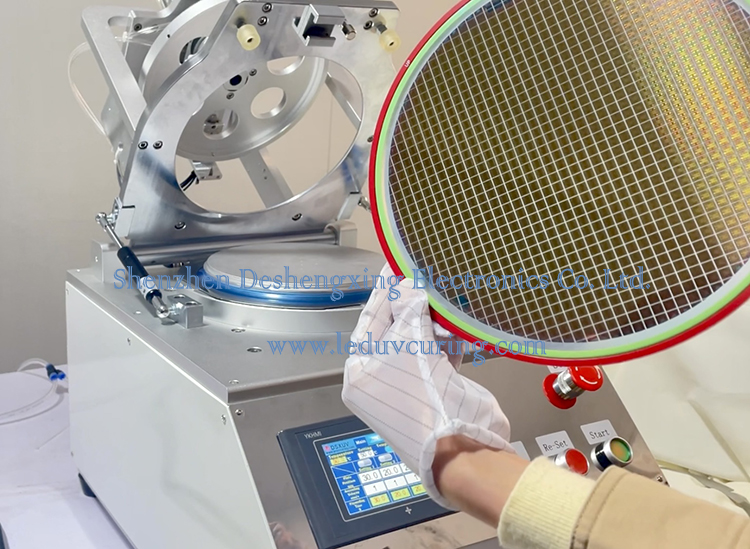

6 inch Semi-automatic Die Matrix Expander is widely used in wafer UV tape blue film expansion, frame ring to hoop ring, customized.

model no. :
Wafer Die Matrix Expander
Brand:
DSXUV
port of dispatch :
Shenzhen
Payment :
T/T 100% before shipment
original region :
China

contact now

Product Details

Standard 6inch Semiautomatic Semiconductor Wafer Tape Expander has 6inch/8inch/12inch, customer can customize the device according to the requirements. Common specification is frame ring to hoop ring.

Parameters:

Name	Semiautomatic Wafer Expander	Model	DSXUV-WE-S6
Dimension	L600 x W510 x H1003mm	Size for	6inch wafer and below
Hoop Ring	OD 152 ID 141 mm	Power	500W
Working plate rising height	10-70mm	Voltage	AC 220V, 50/60HZ
Table heating temperature	Indoor Temperature ~ 80 ℃ (thermostatic design)	Air Pressure	0.3-0.8Mpa
Film Type	Blue film, UV tape, PVC	Thickness of Film	0.05-0.2mm
Cutting	Serrated Blade Knife (0-15mm)	Control Mode	Semiautomatic / Manual
Weight	About 85KG	Warranty	New products, non-human damage, the whole machine warranty one year

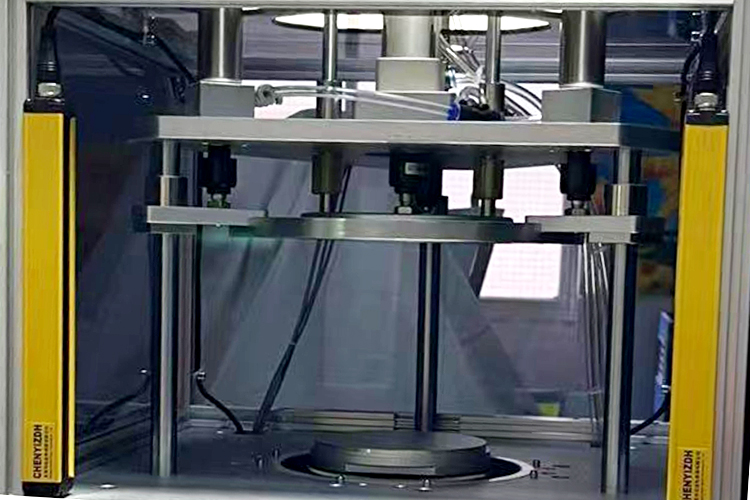

6inch hoop ring work plate

Technological Requirements:

Expanding Size	Standard 6inch Frame Ring
Expanding Film Quality	There is no collapsing film, broken film, and the error of the center of the product after film expansion is within ±2mm
X and Y direction deviation of the film expansion	3 mm (eliminate bias in wafer placement when laminating)
Frame ring and hoop ring can be fixed	Fitted with dowel pins for placing frame ring
Constant temperature design of working disc	Perimembrane expansion is uniform and moderate
Function	Heating temperature, expansion time and speed are adjustable
Characteristics	Work disk does not squeeze the wafer during lifting/drop

Advantage:

1.Height and speed of the film can be set digitally via the touch screen

2.Working disc has a constant temperature heating function, which contributes to the ductility of the film

3.Distance between grains can be adjusted by adjusting the height of the working disk

4.Lower serrated knife automatic film cutting function

5.5 inch touch screen, display parameters, execution steps, fault alarm

6.Motor lifting and cylinder lifting are used to complete the film expanding process to ensure the consistency of film expanding

7.Using PLC as the control system, you can set the preheating delay of the table rising, the film expansion delay and other functions to better improve the quality of the film expansion
