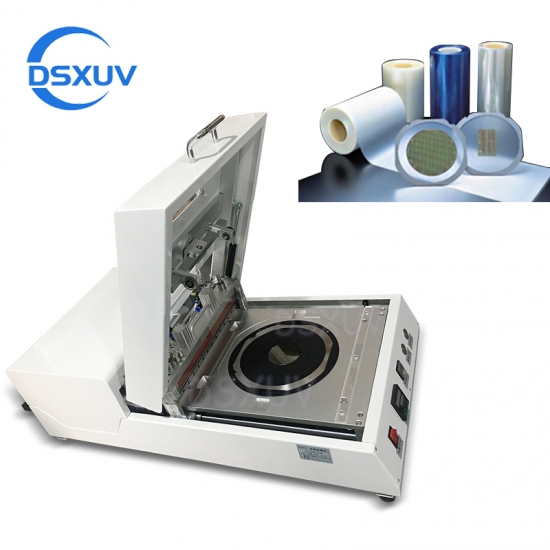

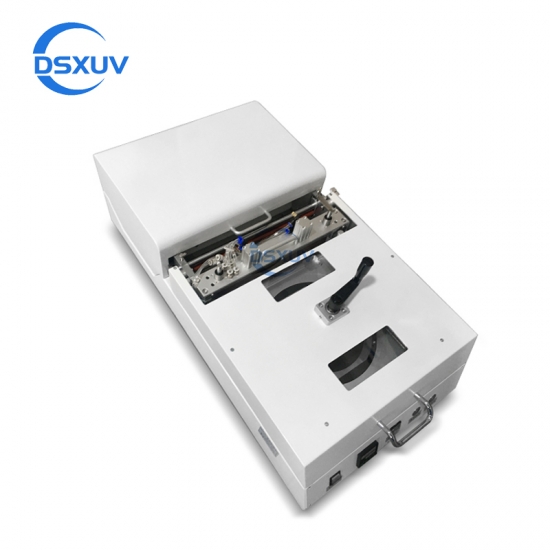

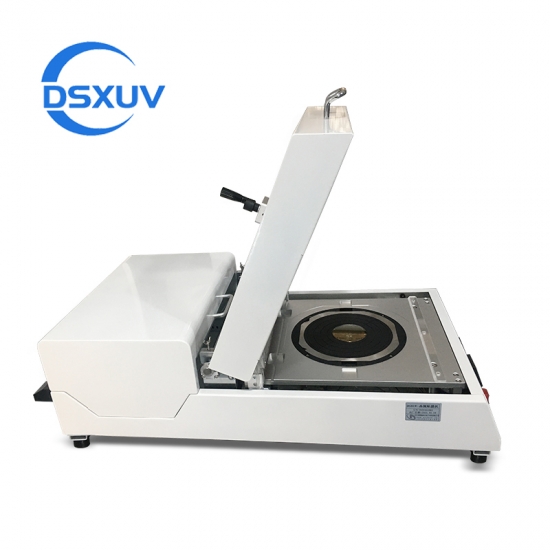

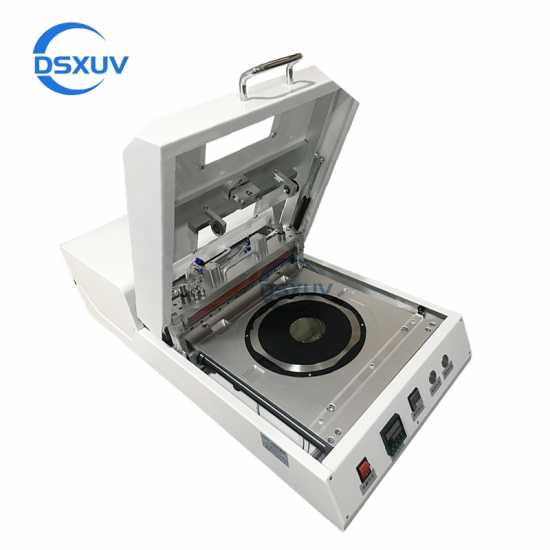

Wafer Frame Film Mounter is a machine that fixes a wafer and a ring together through a blue film or UV film.
model no. :
UV Film Wafer MounterBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% before shipmentoriginal region :
ChinaThe Wafer Frame Film Mounter is a machine that fixes a wafer and a ring together through a blue film or UV film. The Wafer Mounter adsorbs the product on the vacuum plate through vacuum, stretches and covers the thin film on the semiconductor (wafer, glass, LED, PCB), and sticks the thin film on the back of the wafer, namely the cutting rack, through the circular knife and transverse cutter.
The special saving film design can greatly reduce the film cost, and equipped with air flexible elastic (elastic adjustable) pressure roller and desk tray design. DSXUV Manual Wafer Lamination Machine not only can adapt to different thickness of the product, can also minimize the film stress, so that the product is not hurt. Easy to use, no training can be used immediately.
After finishing wafer mounting process, the next step will need to wafer expander or using uv curing systems to reduce the viscosity of uv tape (UV tape UV curing systems).
Parameters:
Name
Wafer Mounting Machine
Type
DSXUV-Wafer-M8
Wafer Size / Frame Dimension
8 inches
Brand Name
DSXUV
Minimize wafer thickness
Normal plate: 500um, micro-porous plate: 100um
Weight (KG)
60KG
Plate heating temperature range
Indoor temperature ~65 ℃
Machine dimension
L875*W450*H317mm
Power supply
AC 220V
Usage
The wafer / semiconductor is attached to the wafer iron ring via a UV film
Compressed air
0.5~0.8 MPa
Thickness of Film
0.05~0.25mm
Mainly functions of Manual Wafer Lamination System:
1.Suitable for blue film, UV film, PET substrate film and double layer coating
2.Optional micro-porous tray for ultra-thin wafers
3.The heated and elastic plate design adapts to wafers of different thickness
4.Special film roller pressure adjustable design
5.Equipped with circumferential cutter and cross cutter
6.Optional electrostatic removal device for ionic wind rod
7.Small size, desktop display type
Saving Film Manual Wafer Laminating System:
Specially designed saving film structure, so that the manual laminating machine series become high saving film manual laminating machine. Compared with ordinary manual laminating machine, it can save about 15%, greatly reducing the cost of customers. The cost savings are even more significant when using expensive UV films now or in the future.
Suitable for ultra-thin wafer micro-porous film plate (optional):
Micro-porous plate is with unique air path design and elastic support structure, suitable for up to 100um thickness wafer, glass or ceramics. This structure is equipped with air flexible elastic, and elastic adjustable roller device can minimize the damage to the ultra-thin wafer during the lamination, greatly reduce the probability of breaking.
Anti-static surface treatment lamination plate with heating function and elasticity:
1.With heating and heating temperature range adjustable plate design, to ensure the film bonding effect can be adjusted to the ideal state.
2.The elastic plate disc adapts to wafers, glass or ceramics of varying thickness
3.The anti-static teflon treatment can not only minimize the static electricity generated during the lamination, but also
effectively prevent physical scratches on the chip.
Wafer Frame Film Mounter Machine can place UV tape and blue film at the same time for using.
6/8/12 inches Manual Wafer Laminator series is a fast and efficient sticking film machine, special designed for wafer, glass, LED PCB, and ceramic cutting process.
Wafer Tape Laminating Machine is a machine that fixes a wafer and a ring together through a blue film or UV film.
DSXUV accept customized various glass material film laminating machine, various UV tape blue film BG film laminating systems.
DSXUV accept customized various glass material film laminating machine, various UV tape blue film BG film laminating systems.
6/8/12inch Wafer Film Tearing Machine is used to remove the protective film on the wafer surface.
