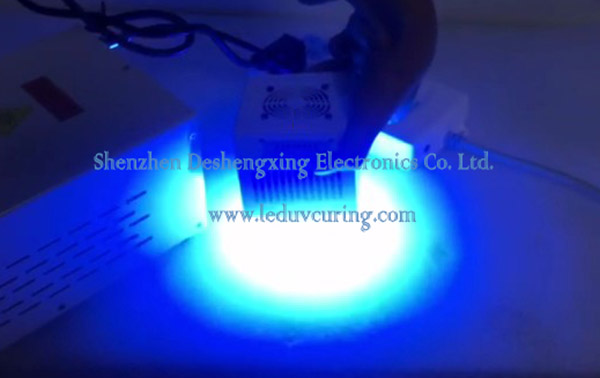

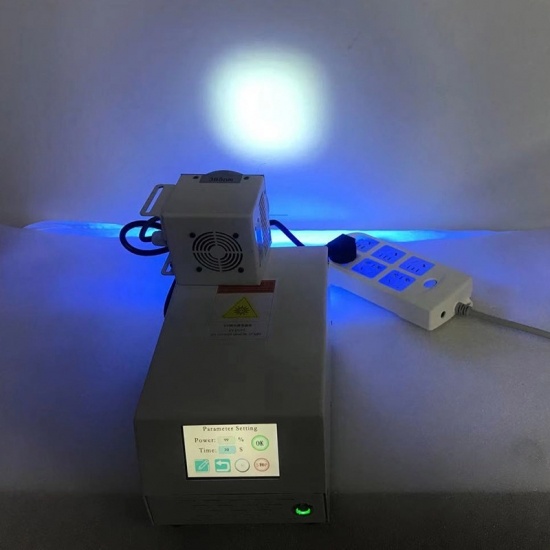

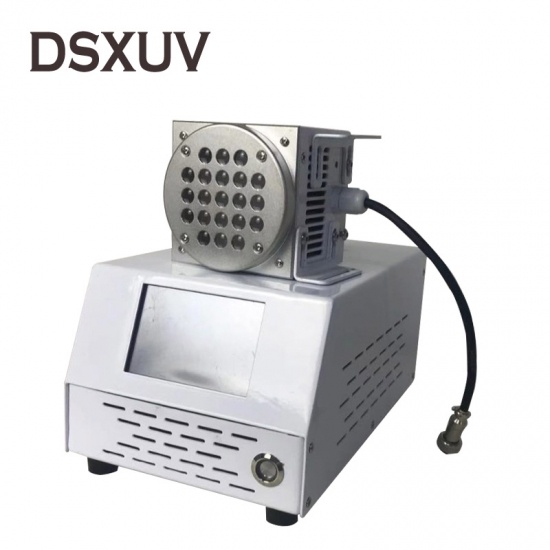

Circle LED UV Solidifying Equipment is simple, easy to maintain. Normal temperature curing, suitable for plastic work-piece, do not produce thermal deformation.
model no. :
Circular UV Curing Light SourceBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :
ChinaFast curing speed, high production efficiency, the curing mechanism is a kind of free radical chain reaction, the cross linking solidification in an instant. High Power Ultraviolet LED Curing Lamp is small environmental pollution, very low UV coating VOC content, recognized green environmental protection product.
Application :
1.Curing UV glue, UV ink, UV coating, etc.
2.Applicable light catalytic degradation decomposition experiment : aldehyde, ketone, halogen inductor, sulfur compounds, paraffin wax, heterocyclic compounds, aromatic molecules nuclear, conjugated dienes, polyene compounds, for example, epoxy compounds light stability test, simulated sunlight ultraviolet aging test, catalyst preparation, chemical products of photochemical synthesis and photochemical degradation of pollutants in the study. Therefore, it is a necessary instrument for chemical industry, environmental protection field, scientific research institutes, colleges and universities professional experimental teaching.
Parameter :

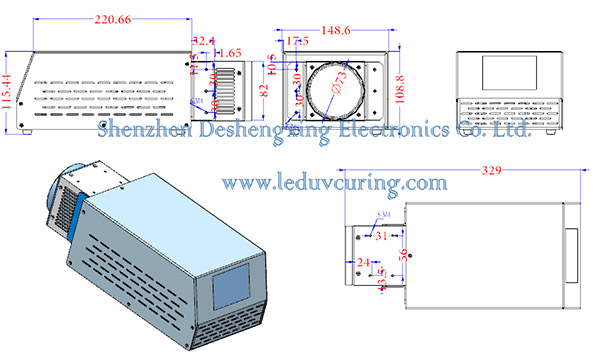

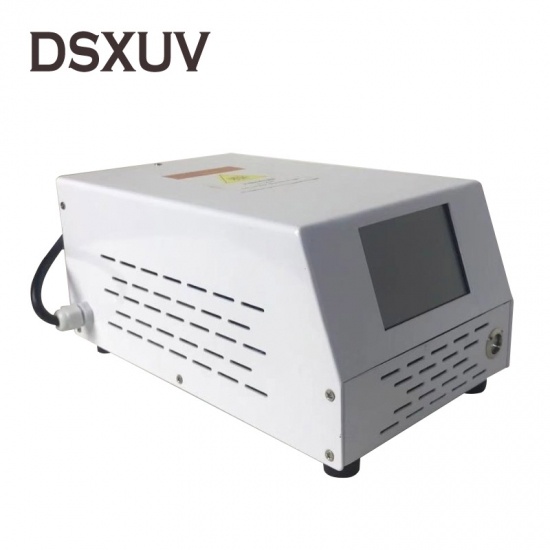

Specification of Controller
Outside dimension |
L245*W150*H110mm |
Cable length |
1-2m |
Cooling |
Air cooling |
Input power |
100-240V AC 50-60 HZ |
Material / weight |
White sheet metal / 2.7kg |
Driving irradiation lamp |
One |
Set the lock |
Built-in changeable password |
Function |
Adjustable time, illumination |

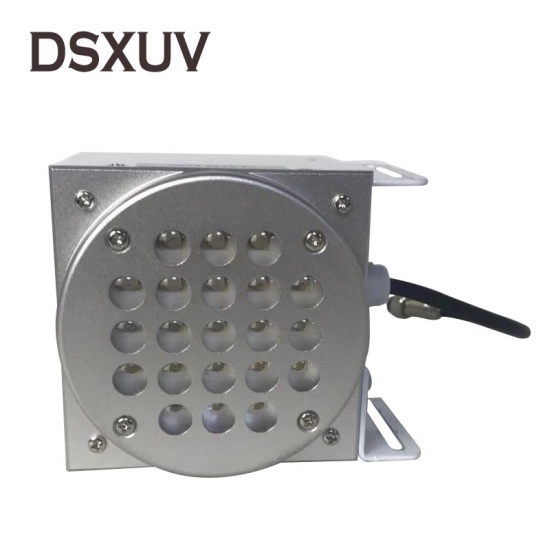

Specification of irradiation head
Lighting area |
φ80mm |
Consumption |
63W |
|
Outside dimension |
L100*W80*H80 mm |
Recommended height |
1 -50mm |
|
Cooling |
Air cooling |
Wavelength |
365nm, or customized |
|
Material |
Sheet metal |
Luminous power(mW/cm2) |
600 |
600 @ EIT |
Service life |
15000 H |
|||
Weight |
0.75kg |
Cable length |
20cm |
Air Cooling UV Solidify Machine, Emitting Window:104*25mm, is designed as a simple, low cost, small form factor air-cooled UV LED curing lamp for pinning and curing of inks, coatings and adhesives, mobile phone touch screen.
The WnnexCureTM EB168 UV Light Emitting Diode provides highest output power in an extremely medium mechanical package for high speed pinning and full cure applications. The EB168 UV LED Light Source is CE, RoHS, and REACH compliant.
100*100mm high power top quality power saving 365nm LED UV Curing Machine Curing UV Glue can be customized. You know 365nm is the best wavelength to cure UV glue.
Customized 365nm UV LED Curing System for lens bonding. UV LED Area Curing System can make glue curing, wavelength 365nm, rec area : 20*25mm, quickly, effective to cure.
Energy Saving Bar Type LED UV Curing System, This kind of UV LED curing system can be used for curing UV ink, UV varnish and UV paint and is suitable for flex printer, offset printer, flatbed printer and flexo printer.
High Power UV LED Dryer for UV Adhesive Curing System is 30*120mm, 365nm.
