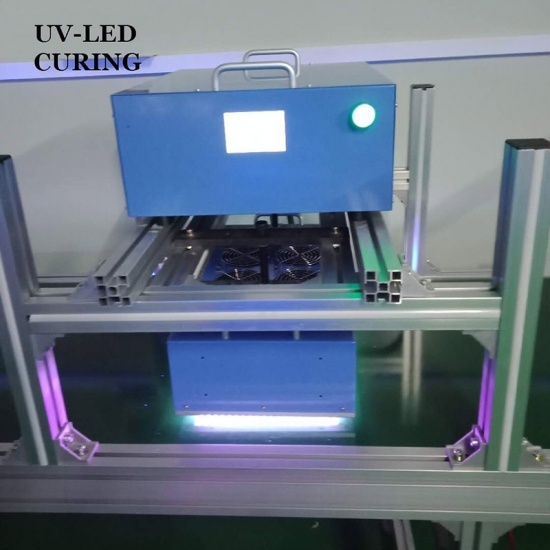

400x300mm UV LED Curing Equipment, supplied for Foxconn mobile assembly LCD screen bonding, have good function in curing, instant drying, enhancing production efficiency.
model no. :
UV LED Curing Light SourceBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :
China400x300mm UV LED Curing Equipment, supplied for Foxconn mobile assembly LCD screen bonding, have good function in curing, instant drying, enhancing production efficiency. Normal temperature curing suitable for plastics work-piece, do not produce thermal deformation. DSX-400-300 UV Curing Systems is with high power and excellent coating performance, but it save energy, small environmental pollution and compact device.

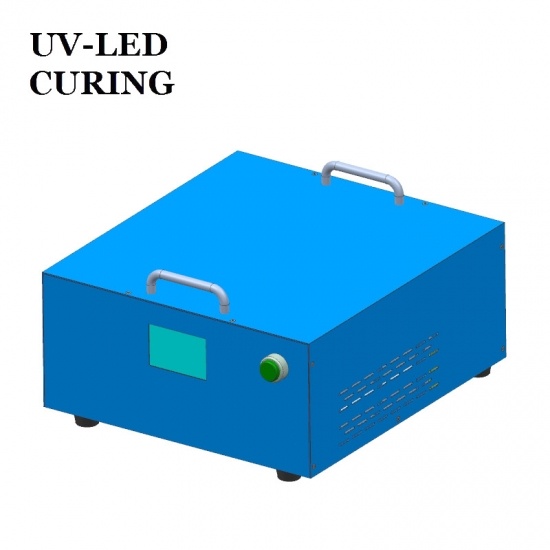

Parameters of UV LED Curing Machine Controller :
Outside dimension |
L350*W207*H160mm |
Consumption |
<5W in standby state |
Cooling |
Air cooling |
Input power |
100-240V AC 50-60 HZ |
Material / weight |
Blue print metal plate / 6.4kg |
Irradiation head |
A host drive an irradiation head |
RS232 Serial Port Communication |
Query and adjust intensity, time, mode |
Control |
Manual, pedal plate |
LED Time Accumulation |
Actively record cumulative usage time |
External Terminals |
Can be connected with single machine, PLC and other equipment for control and working state feedback |

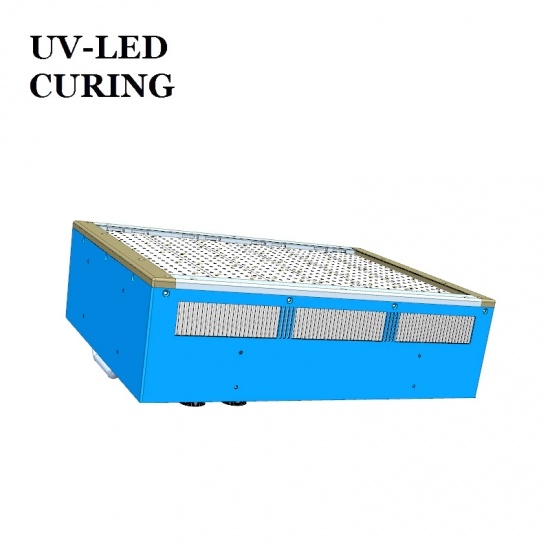

Parameters of UV LED Curing Facility Irradiation Head :
Lighting Area |
400 * 300mm |
Power |
1800W |

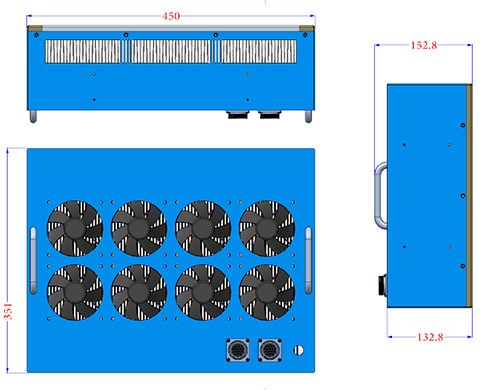

Outside dimension |
L 450*W351*H153mm |
Recommended height |
5 -20mm |
Cooling |
Air cooling |
Wavelength |
365 nm |
Material / weight |
Blue print metal plate / 8kg |
Optical power (mW/cm2) |
1000 @ EIT |
Service life of UV LED |
20000 H |
||
Display |
LCD screen touch |
Cable |
2 .5 m |
Application :
Micro-electronics, liquid crystals, PCB, optical communication, optical and other linear light solidification
High grade furniture UV print curing
Handicraft spray solidification
Printing anti-counterfeiting detection
TFT-LCD panel irrigation and mouth encapsulation
Edge solidification of capacitive screen side and sealing edge solidification
Liquid crystal UV glue adhesion to the side solidification
The mobile phone screen is refurbished with glue
The sealing edge of the LED LCD OLED screen solidification
Linear solidification, gap solidification, gap bonding
