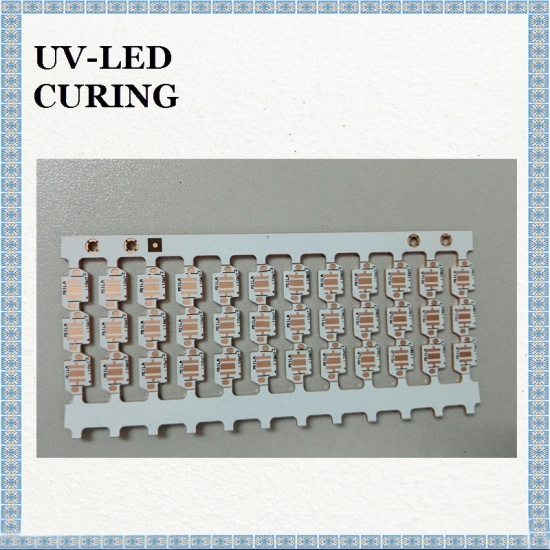

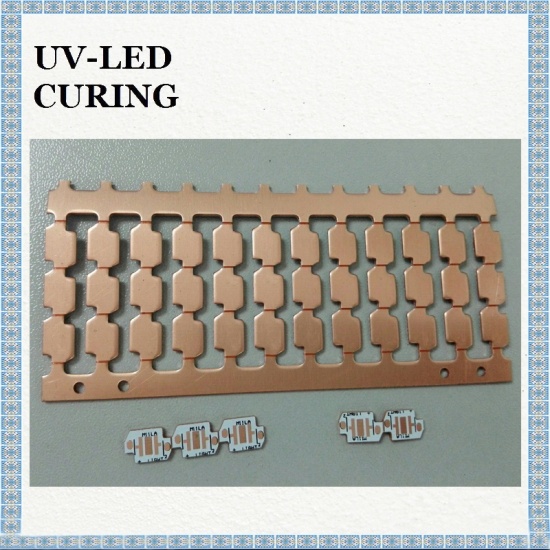

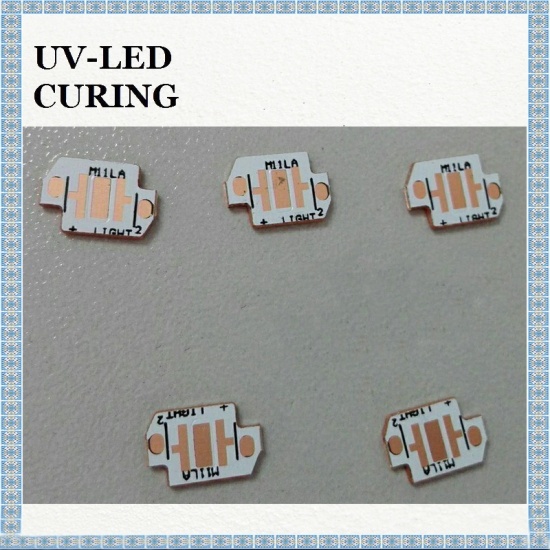

3535 Copper Substrate is suitable for most of the 3535 LED bead welding feet, such as UVLED spot light source, 3535 lamp beads, Seoul lamps LG and domestic 3535 lamps are available.
model no. :
3535 Copper SubstrateBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINA3535 Lamp Bead Copper Substrate UVLED Point Light Source Copper Substrate 395nm405nm Lamp UV Spot Light Source Copper Substrate
Suitable for most of the 3535 LED bead welding on the market welding UVLED point light source, 395nm 405mnm 415nm and other bands of 3535 lamp beads, Seoul Virup Lights, South Korea LG and domestic 3535 lights are available
specification:
Material: copper
Thermal conductivity: 401 W/(m*K) better than aluminum

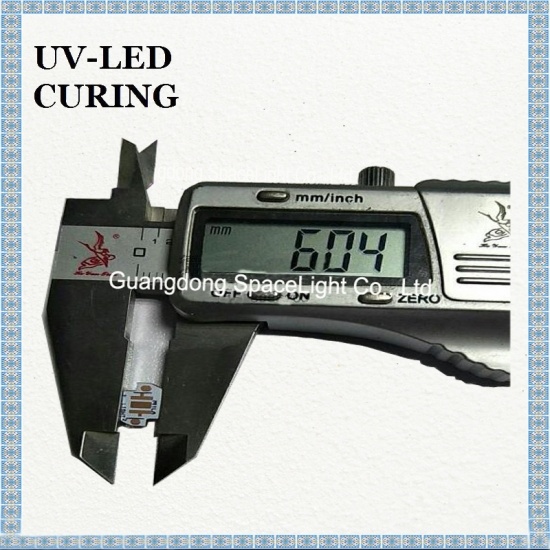

Size: length 9mm width 6mm thickness 1.0mm
Scope of application: photoelectric laboratory test, UVLED point light source, etc.
This type of 16mm Printed Circuit Board is suitable for 2835 LED light beads.
This is the type for welding three 3535 LEDs in parallel 20mm Copper Base Board, which is appropriate for all 3535 LED light beads.
NICHIA's two new lamp beads NCSU276A and NVSU233A can be equipped with a dedicated copper substrate. Nissan 3535 is tailor-made for copper substrates, for flshlight,laboratory,etc..
The NCSU033B Thermoelectric Separation Copper Substrate is a dedicated substrate for the UV LED spot light irradiation head.
CUN6GF1A 365nm 4 series 12V copper specifications: 20mm *1.5mm High brightness curing.
NICHIA dedicated copper substrate. Off-the-shelf NCSU033B copper board, NC4U133B copper board, NVSU333A copper board, size 20*1.6mm.
