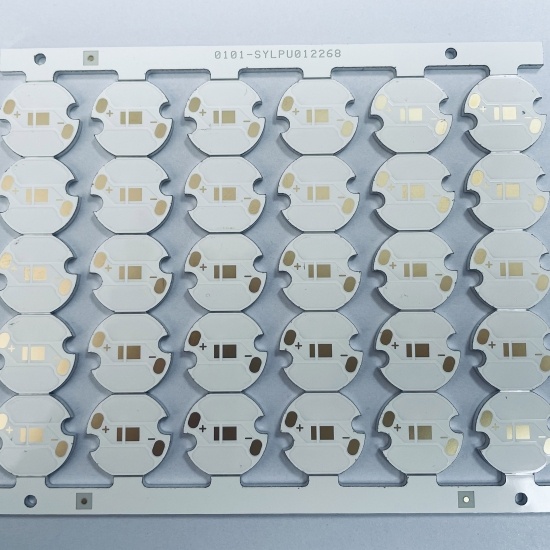

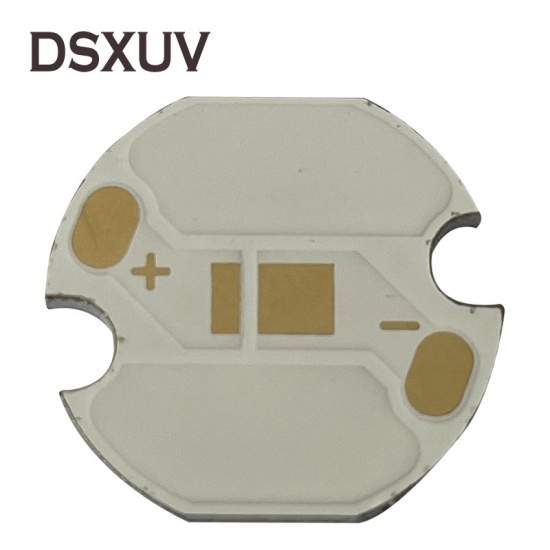

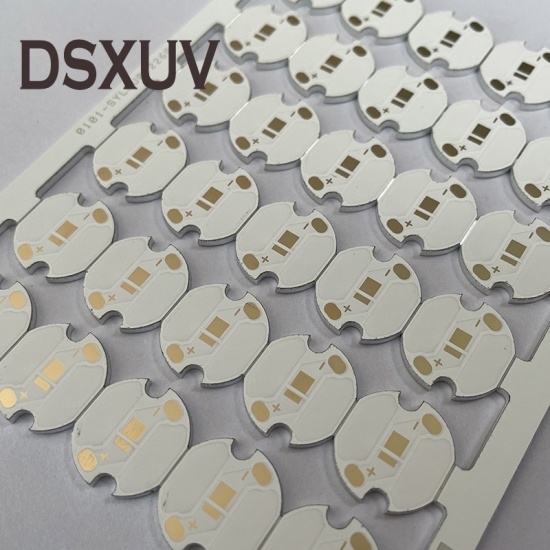

This type of 16mm Printed Circuit Board is suitable for 2835 LED light beads.
model no. :
2835 LED PCBBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :

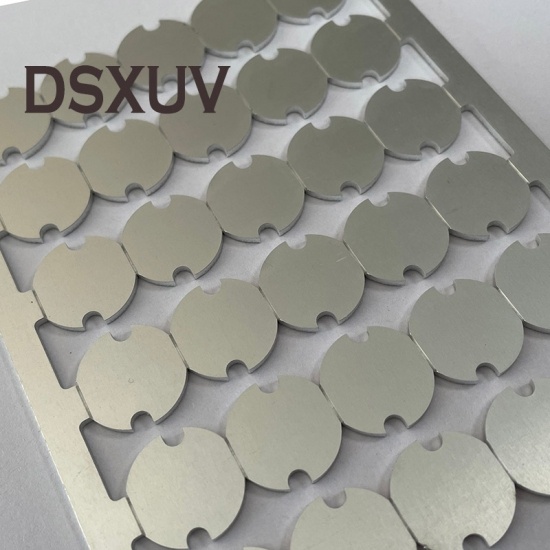

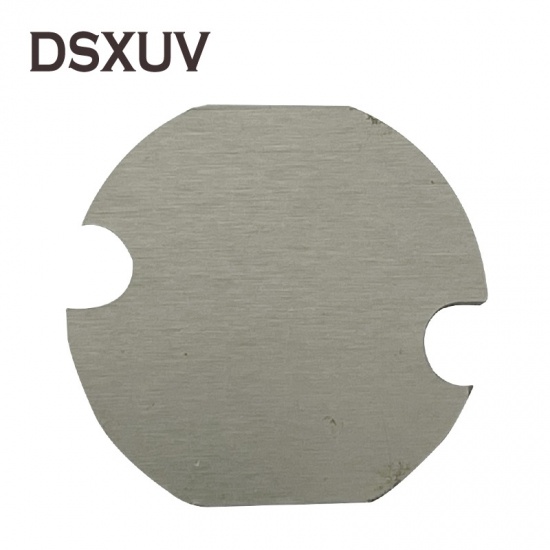

ChinaThis type of 16mm Aluminium Basal Plate is suitable for 2835 LED light beads. If you need other size PCB or copper substrate, please contact service. All kind of base board can be customized. Welcome to consult at any time!
Parameters :
LED Module : 2835 LED light bead
Dimension : diameter 16mm, thickness 1.6mm, ±1mm

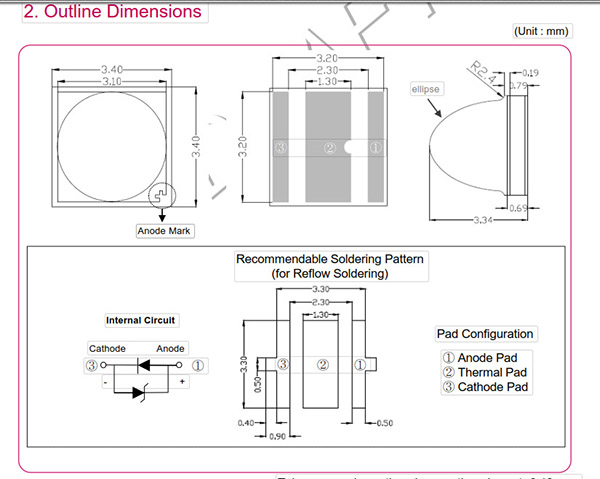

This is the type for welding three 3535 LEDs in parallel 20mm Copper Base Board, which is appropriate for all 3535 LED light beads.
NICHIA's two new lamp beads NCSU276A and NVSU233A can be equipped with a dedicated copper substrate. Nissan 3535 is tailor-made for copper substrates, for flshlight,laboratory,etc..
The NCSU033B Thermoelectric Separation Copper Substrate is a dedicated substrate for the UV LED spot light irradiation head.
CUN6GF1A 365nm 4 series 12V copper specifications: 20mm *1.5mm High brightness curing.
NICHIA dedicated copper substrate. Off-the-shelf NCSU033B copper board, NC4U133B copper board, NVSU333A copper board, size 20*1.6mm.
Thermoelectric separation of copper substrate, diameter 16mm, thickness 1.6mm, suitable for UV Flashlight of SVC and LG3535 Light. Attention: not suitable for NICHIA.
