6 inches 3D Printer LED Light Source Module is designed for aspheric surface, ultra-precision machining, widely used in the field of 3D printing
model no. :
405nm LED Optical Lens ModuleBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% before shipmentoriginal region :

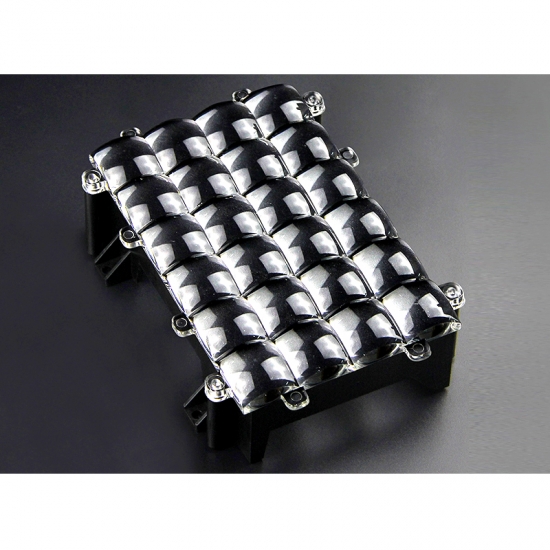

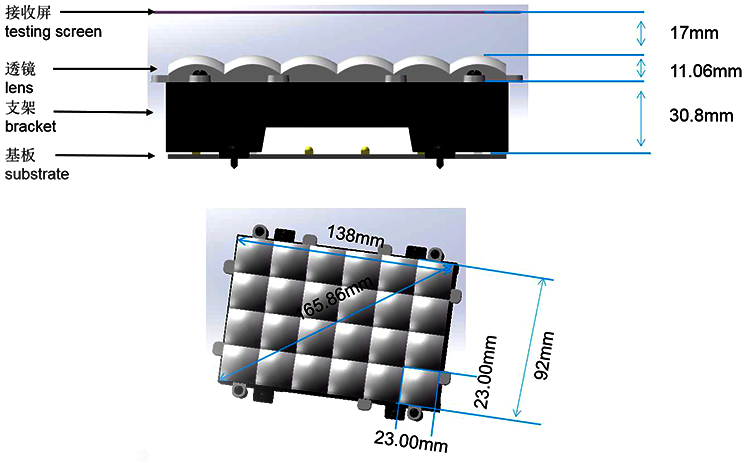

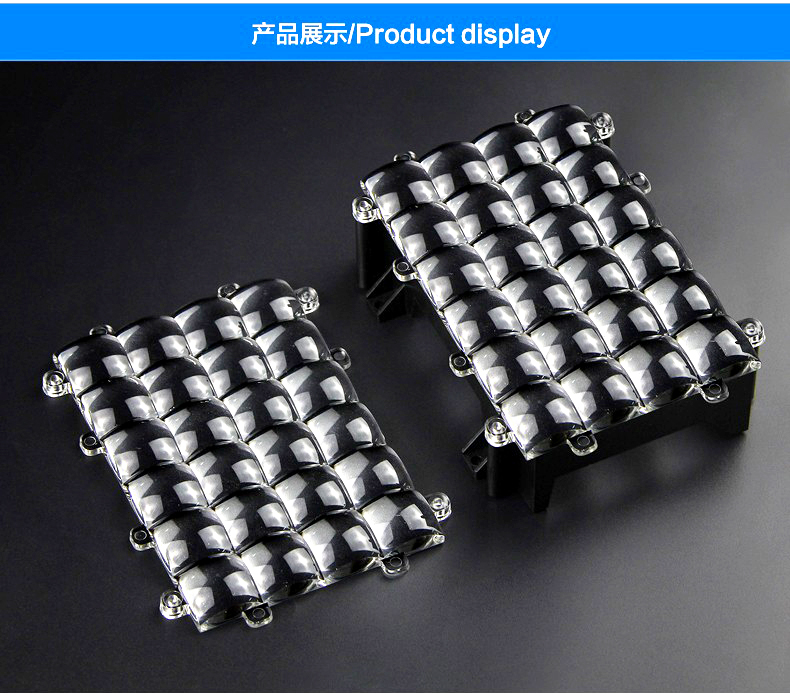

China405nm LED Light 3D Parallel Array Module Lens is designed for aspheric surface, ultra-precision machining, processing accuracy of lens than 1um, high transmittance, UV resistance, the product is widely used in the field of 3D printing.

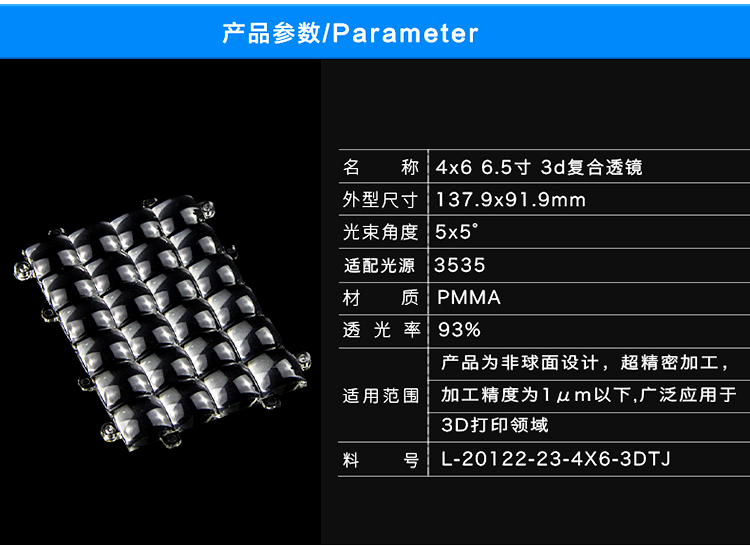

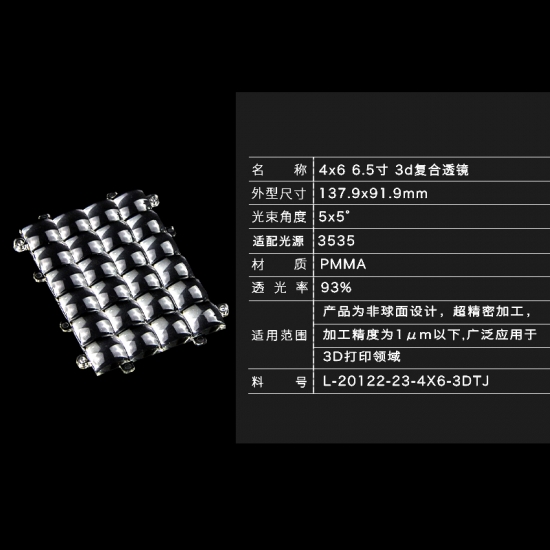

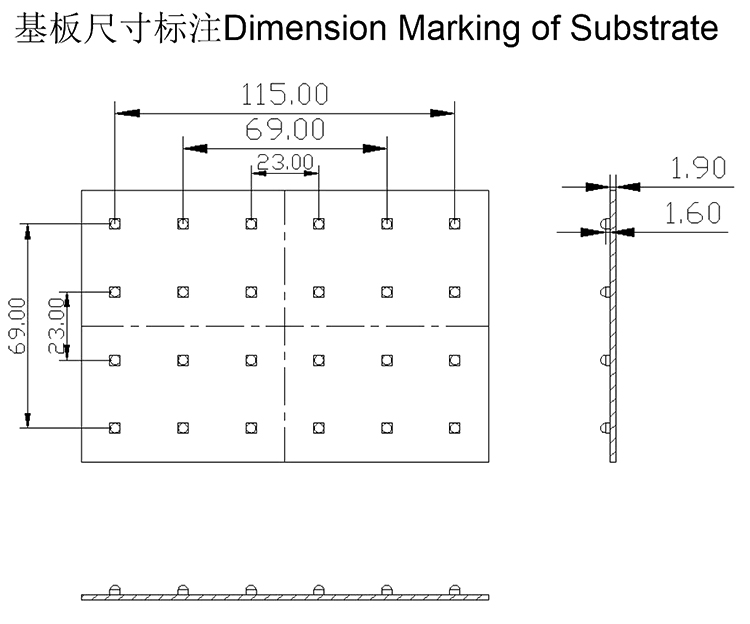

Power of UV LED: 3W/pcs, 4*6=24pcs,
Total Power: 24*3=72W
Wavelength: 405nm, customized
Angle: collimation: 3.5 degrees
Uniformity: 90%
Introduction of parallel light
1. Parallel light source is normally used for high precision measurements
2. Parallel light has a very high contrast at the edge.
3. It reduces diffuse reflection, which is good for image boundary recognition
Other:
Product is not suitable to use in following conditions;
—-Direct or indirect wet / damp conditions, such as rain, etc;
—-in contact with sea water and erosive materials;
—-Exposed to corrosive gases (e.g., Cl2, H2S, NH3, SOx, NOx, etc.);
—-Exposed to dust, liquids or oils;

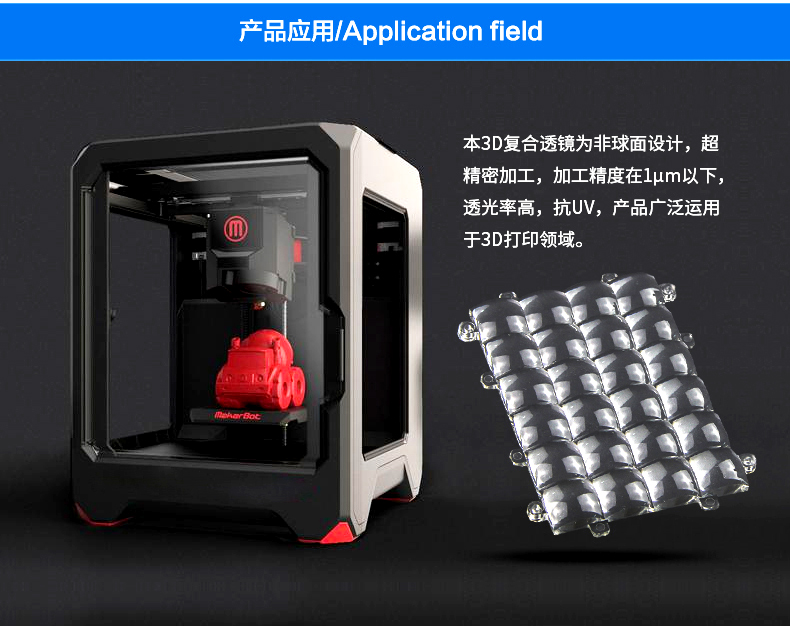

This 3D Parallel Array Module Lens is widely used in the field of 3D printing industry, high transmittance, UV resistance.
This 3D Printing Light Source Module Lens is widely used in the field of 3D printing.
Parallel 405nm UV Light Source Module Lens is widely used in the field of 3D printing
