10mW UVC Ultraviolet LED has the advantages of high reliability, low thermal resistance, light Angle adjustable, and so on.
model no. :
10mW UVC UV Sterilizing LampBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :

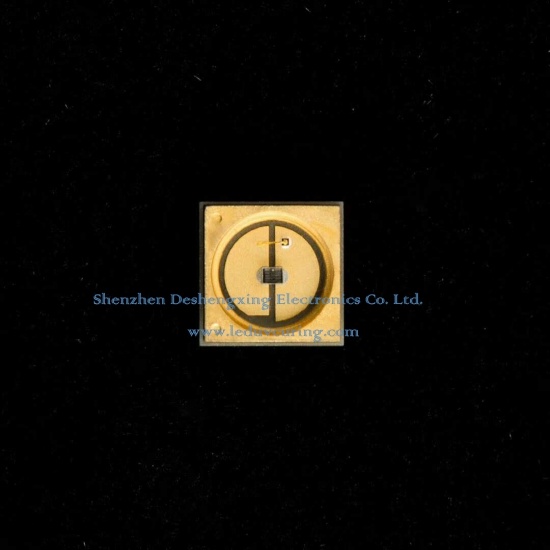

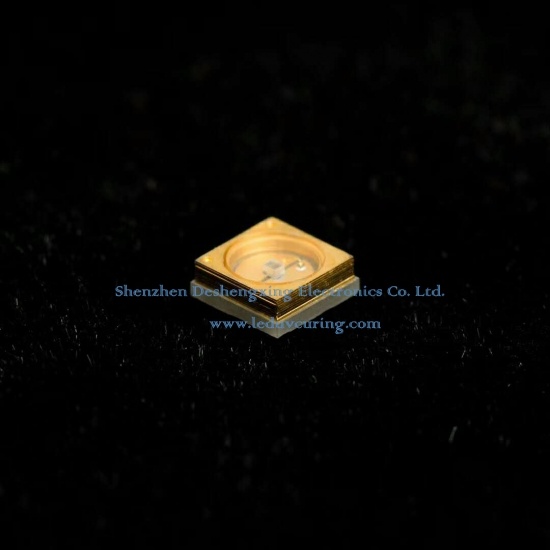

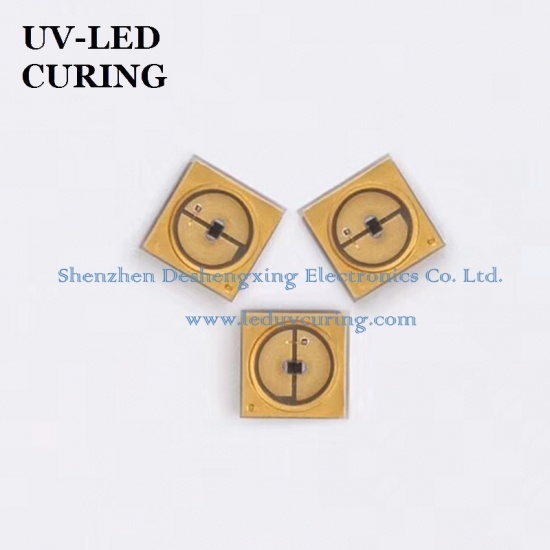

ChinaThis is a deep UVC ultraviolet LED device that can emit 280nm ultraviolet light. UVC UV Sterilizing Lamp for Sterilization and Disinfection uses high thermal conductivity packaging materials, has the advantages of high reliability, low thermal resistance, light Angle adjustable, and so on, is an ideal deep UV light source chip device.
With its friendly bactericidal and sterilizing performance, deep UVC Ultraviolet Sterilizing Lamp has been applied in various civil and military scenarios such as air, water, surface sterilization, chemical analysis, and biological action, etc., showing infinite possibilities for the semiconductor LED industry.

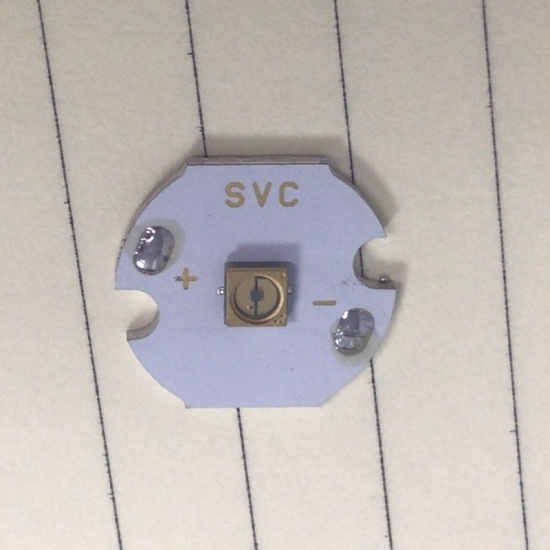

When purchasing, please note whether welding is required. The welding substrate is charged according to the market price, which is not too expensive.
Photoelectric Parameter of Germicidal UVC LED Ultraviolet Light for Disinfection :
(Ta=25℃,RH=30%)
Parameter |
Symbol |
Sub-file |
Value |
Unit |
Peak wavelength |
λp |
Default |
(270, 280] |
nm |
-W |
(280, 290] |
|||
Luminous Power |
φe |
20M001@40mA |
2-4 |
mW |
20E006@80mA |
6-8 √ |
|||
30a700@100mA |
8-12 |
|||
Driving Voltage |
Vf |
/ |
5-7 |
V |
Full Width Half Maximum |
△λ |
/ |
11±2 |
nm |

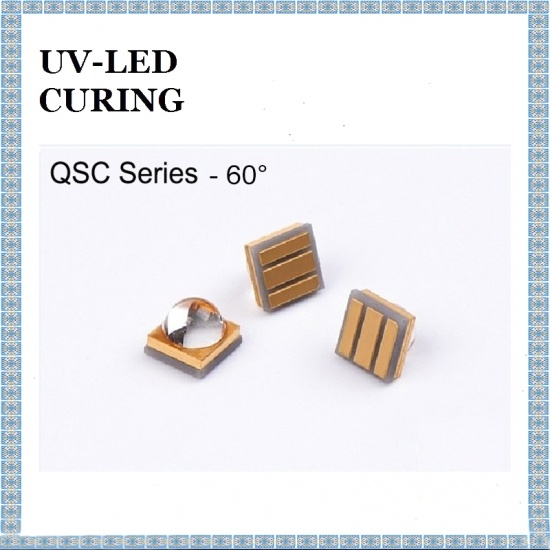

Angle of Light |
2θ1/2 |
Default |
60 |
deg. |
-120° |
120 |
|||
Anti-static |
HBM |
/ |
>8 |
KV |
Maximum Rating of High Efficiency UVC UV Germicidal Irradiation Kills Virus :
(Ta=25℃,RH=30%)
Parameter |
Symbol |
Value |
Unit |
||
Min |
Type |
Max |
|||
Operating Temperature |
Topr |
-30 |
|
60 |
℃ |
Storage Temperature |
Tstg |
-40 |
|
100 |
℃ |
Thermal Resistant |
Rjs |
|
15 |
|
K/W |
Remark:
1.Light power refers to the total light output power collected using the integrating sphere (ATA-1000 in the distance of Hangzhou)
2.Thermal resistance refers to the total thermal resistance value from the power area of the chip to the patch solder
3.All data are based on the results of the deep ultraviolet technology test instrument, but some values may be slightly different depending on the conditions of the test equipment.
Application of High Performance UVC Disinfection Lamp for Healthcare :
1. Surface Sterilization, Water Sterilization, Ultraviolet Phototherapy, Air Purification
2. Surface sterilization : all objects in direct and indirect contact with the human body, their surface bacteria are in the application of deep ultraviolet LED sterilization consideration.
3. Water sterilization : water is the source of life, and the human health is closely related. Deep ultraviolet LED assisted water sterilization, making healthy water easier to obtain.
4. Air purification : a compact purifier with a higher spatial disinfection capability can be achieve by combining a deep UV LED with a filter.
5. Analysis and detection : certain substances have properties that enable them to absorb certain wavelengths of ultraviolet light and produce fluorescence. Because they are obtained by irradiating UV light and measuring the amount of light emitted.
