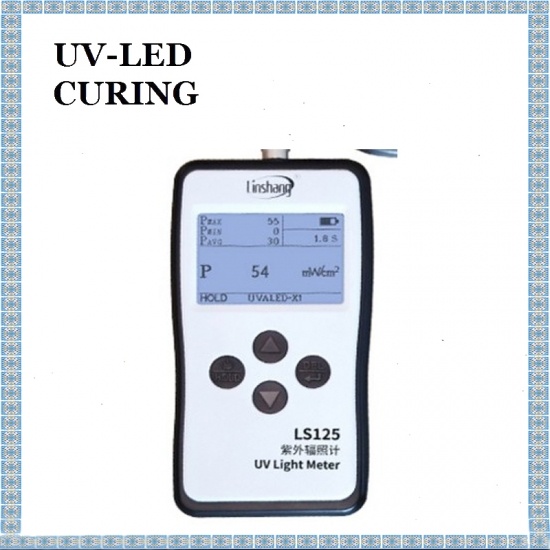

UVA LED - X1 LS125 UV Intensity Meter Special for LED Spot Light Source is with ultra-small hole diameter should be used to direct its intensity and energy.
model no. :
UVA LED - X1 UV Light MetersBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/T 100% Before Shipmentoriginal region :
ChinaLED Spot Light Source is mostly used in curing industry and exposure industry. Because the spot of LED point light source is small, LS125 UVA Ultraviolet Radiometer with ultra-small hole diameter should be used to direct its intensity and energy.

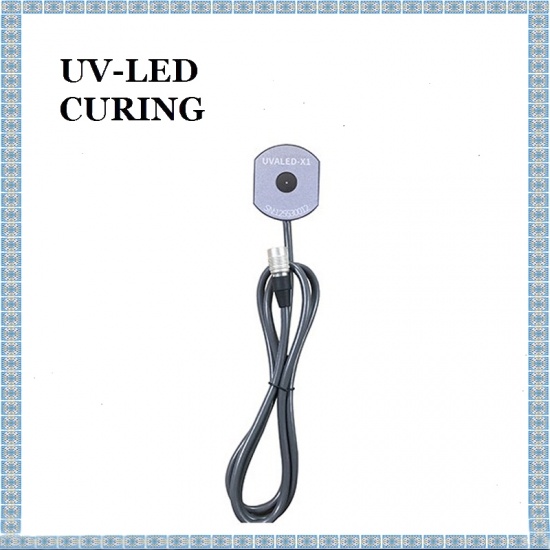

Parameters of UVA LED - X1 UV Semsor Probe :
Type of Probe |
LS125 UVA - X1 UV Sensor Probe |
Spectral Response |
340-420nm, UV Meter for 395nm UV LED Light Source |
Power Measurement Range |
0-20000mW/cm2 |
Power Resolution |
1mW/cm2 |
Energy Measurement Range |
0 - 9999999μJ/cm2 |
Write Time |
0 - 99999S |
Measurement Accuracy |
±10 % |
Sampling Rate |
2000 times / s |
Units |
mW/cm2 (default),W/cm2,W/m2 |
Test the Diameter of Light Hole |
¢1mm |
Probe Size |
L39mmxW32mmxH15mm |
Spectrum Response of HandHeld LS125 UV Light Meter UVA LED - X1 Probe :
The Features of LS125 UV Radiation Intensity Meter UVA LED - X1 UV Sensor Probe :
1.1mm ultra-small test aperture, suitable for intensity and energy testing of 340-420nm LED spot light source.
2.The instrument can measure the energy value and power value at the same time.
3.With first class statistical function, real time value of power, maximum value, minimum value, average value, measuring time, energy value are displayed at the same time.
4.Three measurement units can be switched : mW/cm2 (default), W/cm2 and W/m2. data conversion between units does not require manual calculation.

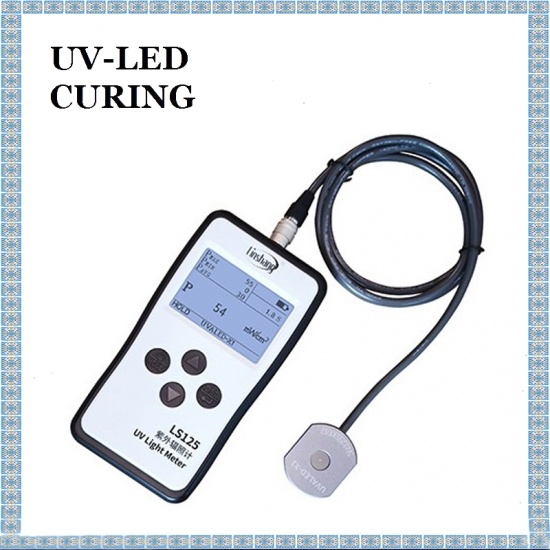

Connection of LS125 UV Power Meter Host and Probe :
1.Insert probe : align the probe interface and rotate to the appropriate position to insert the probe
2.Pull out the probe : pinch the pull button with fingers and pull it up to pull out
Packing Details of LS125 Handheld UV Measurement for Measuring UV Wavelength :
1.Plastic engineering box
2.Instructions
3.LS125 UV Radiation Meter Host
4.Certification of compliance / warranty card
5.2AAA battery test probes (subject to the actual purchase quantity)
