model no. :
UV LED Curing MachineBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/T 100% Before Shipmentoriginal region :
CHINAHigh Intensity High Power LED UV Lamp UV Curing System is flexo printing, 400mm, clod light source, stable output, etc. With excellent technology, according to the different rrquirements of customers, Shenzhen Deshengxing Electronics Co., Ltd. can customize the solution of curing light source.
Details of High Intensity LED UV Exposure Systems for UV Encapsulation :
Place of Origin |
Guangdong, China (Mainland) |
Brand Name |
UV-LED CURING |
Model Number |
UV-LED CURING-352-400X20MM |
Rated Power |
1056w |
Voltage |
220V |
Wavelength |
365nm/385nm/395nm/405nm |
Product name |
UV Curing machine |
Application |
UV printing |
Certification |
CE RoHS |
Power |
1056w |
Specification of Mini 395nm UV LED Line Light Source Lamp for UV Glue :
Model No. |
UV-LED CURING-S792-600X30-395 |
Emitting Size |
400x20mm |
Wavelength |
395nm |
Light Power Density |
13000mW/cm2 |
Cooling Method |
Water cooling |
Power |
1050W |
Work Voltage |
110V-220V/50HZ/60HZ |
Do not meet your requirements?
DON'T WORRY! Any wavelengths, sizes and peak irradiance can be customized, and more high power UV LED can meet your requirements.

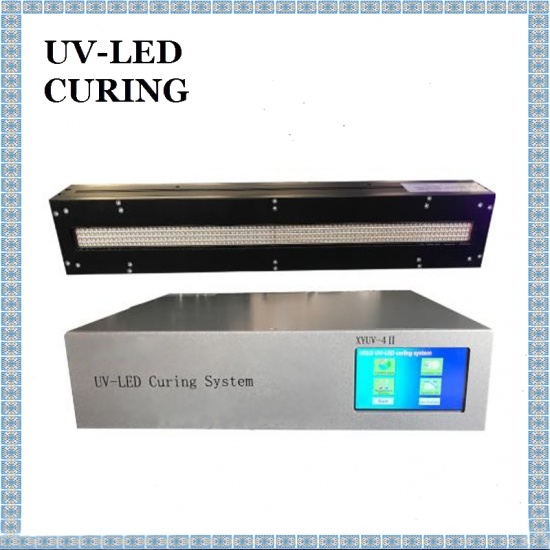

Intelligent Controller Specification of Industrial LED UV Curing Light for Screen Printing :
Model No. |
XYUV-4II |
Channel |
One |
Dimension |
L384*W284*H90mm |
Power supply voltage |
AC100~240V±10%(50/60HZ) |
Cooling Method |
Fan cooling |
Product Application of Customizable UV LED Uniform Line Illumination Light Source :

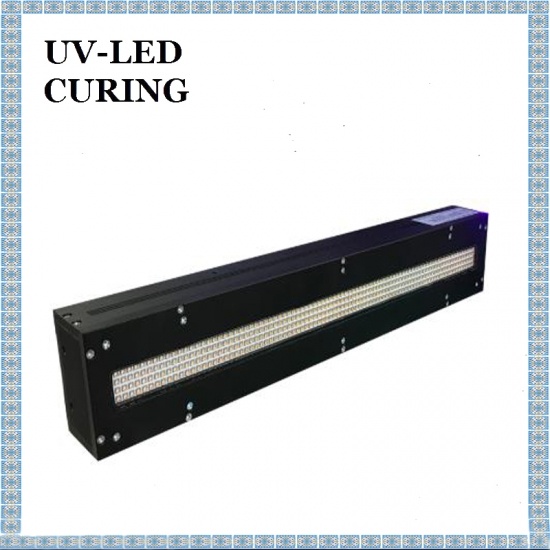

UV-LED CURING-S352-20x400 is a high quality UV LED area light source curing system, the system includes the controller, UV LED irradiation head and water chiller. UV LED head with imported high-intensity UV LED integrated UV spectral wavelength of 365nm, 385nm, 395nm, 405nm, the effective curing area is 20x400mm, support for external signal input and trigger, can be equipped with semi-automatic or fully automated production line and printing .
Replace the mercury lamp!
High Effeciency UV LED Curing Lamp, because of its extra-long life, energy saving, stable output, high uniformity,has been chosen by customers. And also, mulyiple control modes is one of its advantages.
Fan/Water cooling is used to High Power 395nm UV LED Curing Lamp. Because of cold light source, it does not produce harmful ultraviolet radiation without thermal radiation and reduce the heat generated by the curing process.
Professional and Effective UV LED Curing Dryer, the wavelength is 365~405nm, is not suitable for nails.
Air-Cooled UV LED Linear Light Souce is through professional designed optical lens module outputting a long and narrow UV LED light band, satisfying banding, printing and other production needs.
UV LED Linear Light Source Machine do not need to replace the ink, is power saving, high efficiency, practical, mercury free, etc..
Customized UV LED Linear Light Source System, its luminescent mode emits a linear light spot, is made of numbers of LED chips.
