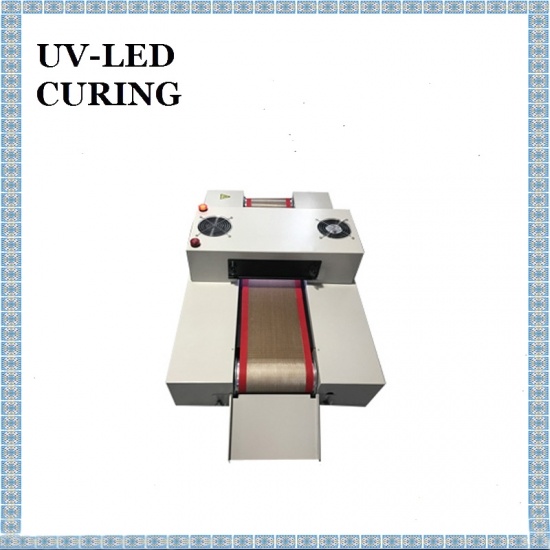

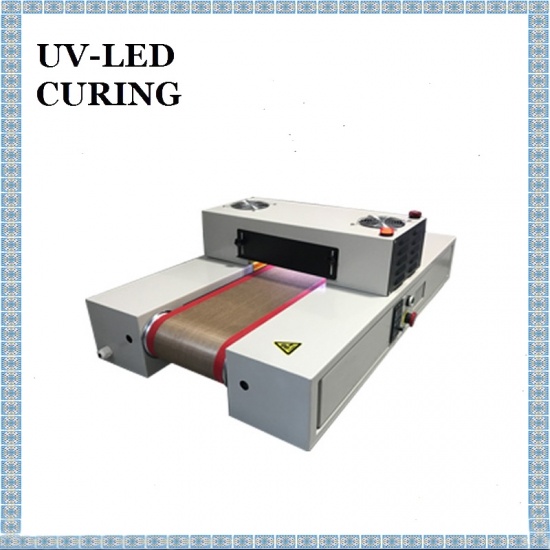

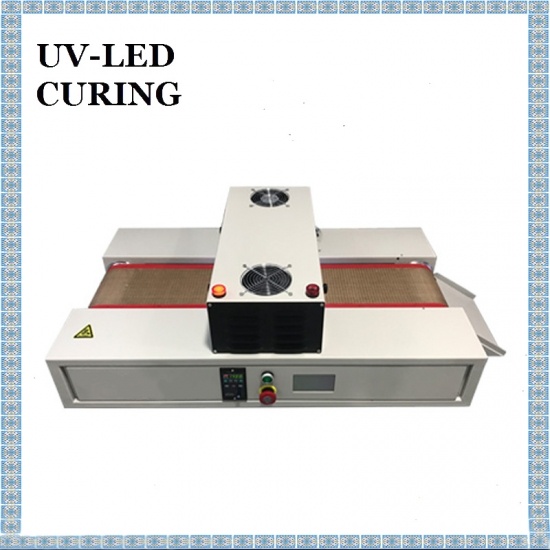

DSX-SL140-200X150-365 High Speed Desktop LED UV Curing Machine supports external signal input and triggering and can be used in semi-automatic or fully automatic production lines.
model no. :
200x150mm UV DryerBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/T 100% Before Shipmentoriginal region :
CHINAThe UVLED head of the machine is integrated with imported high-intensity ultraviolet LED. The UV spectrum wavelength is 365nm. The effective curing area is 200X150mm. 200x150mm High Speed Desktop LED UV Curing Machine supports external signal input and triggering. It can be used in semi-automatic or fully automatic production lines. The conveyor belt is made of Teflon.
Specification Sheet :
Model: DSXUV-200-150-365
wavelength : 365nm / 395nm
Electric power : 420W
Optical power density : 1000MW/CM2, 2000mW/cm2
Irradiation area : 200*150mm
Heat dissipation method : Air cooled
Overall size : L1000mm*W580mm*H300mm
Product Overview
LED UV curing machine replaces traditional mercury lamp, built-in UVLED curing light source, low temperature, no ozone, no deep ultraviolet, low energy consumption, high efficiency, no infrared radiation, cold light source, suitable for curing of various heat sensitive materials UV glue, infrared transmission Intelligent control, start-stop control on demand.
The Advantages of Company :
1. Decades of experience in UV LED curing equipment production
2. Accumulated rich experience in the most complete application field of UV LED
3. The earliest manufacturer of UV LED curing equipment in China
4. UV LED curing expert, industry brand leader
5. The most complete supporting supplier in the whole UV LED application field
The Reasons for why you choose Products :
1. Energy conversation and environment protection, no polluting the environment
2. It’s on and off without preheating.
3. No mercury, no ozone
4. Reliable quality, affordable price, excellent user experience
5. With excellent technology, according to the different requirements of customers, we can customize the solution of curing light source.
Energy saving factory price UV LED Curing System with desktop conveyor for printing. Effective irradiated area: 30mm*200mmTotall size: 1500x300mm and 1200x400mm
Customized UV LED Dyrer UV Curing Machine with conveyor system.Chain conveyor belt can be adjustable width.Curing Area 300*200mm or other sizes available.
Desktop LED UV Dryer Machine for uv curing. PCB/PCBA Conformal Coating curing. SMT component protection and reinforcement. Medical instrument UV glue curing.
UV LED data line solder joint reinforcement curing machine, replacing traditional mercury lamp, built-in UVLED curing light source, low temperature, no ozone, no deep ultraviolet, low energy consumption and high efficiency.
High Power UV Curing System 395nm is for fast curing. It is without preheating, out-of-the-box, easy to handle.
UV LED Curing Machine for Label Printing is 1000W, for offset printing. It most used for machine facilities.
