1.5 Degree Quartz Glass Lens for Parallel UV LED Light Exposure Machine

1.5 Degree Quartz Glass Lens for Parallel UV LED Light Exposure Machine

1.5 Degree Quartz Glass Lens for Parallel UV LED Light Exposure Machine

1.5 Degree Quartz Glass Lens for Parallel UV LED Light Exposure Machine

1.5 Degree Quartz Glass Lens for Parallel UV LED Light Exposure Machine

1.5 Degree Parallel Optical Lens special for Exposure Machine, Mask Aligner, exposing machine, Stepper, etc..

model no. :
1.5 Degree Quartz Glass Lens
Brand:
DSXUV
port of dispatch :
Shenzhen
Payment :
T/T 100% Before Shipment
original region :
China

contact now

Product Details

1.5 Degree Parallel Light LED Quartz Lens special for Exposure Machine, Mask Aligner, exposing machine, Stepper, etc..

Parameters of Hemispherical LED Quartz Glass Lens :

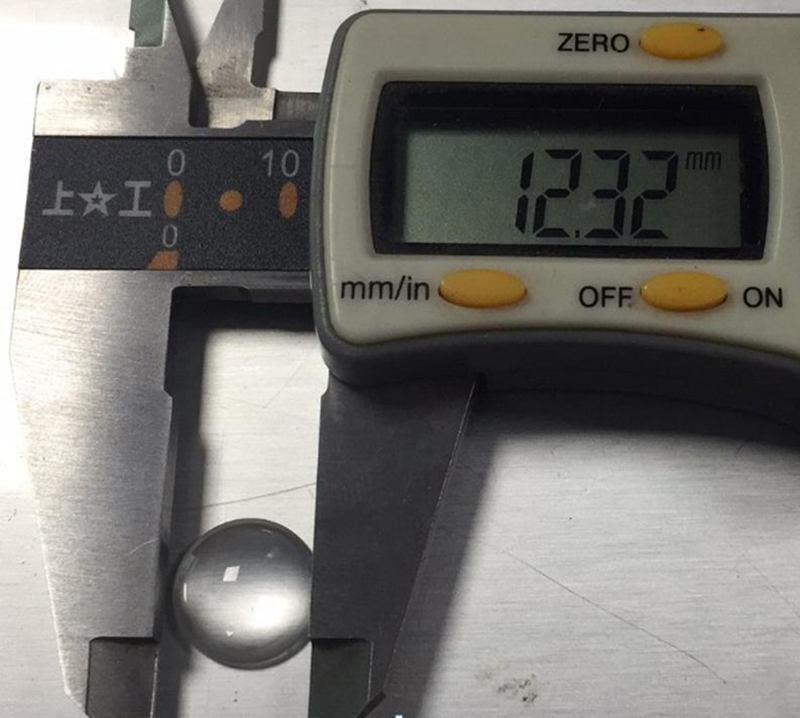

Diameter : 12.3mm tolerance : +- 0.15mm

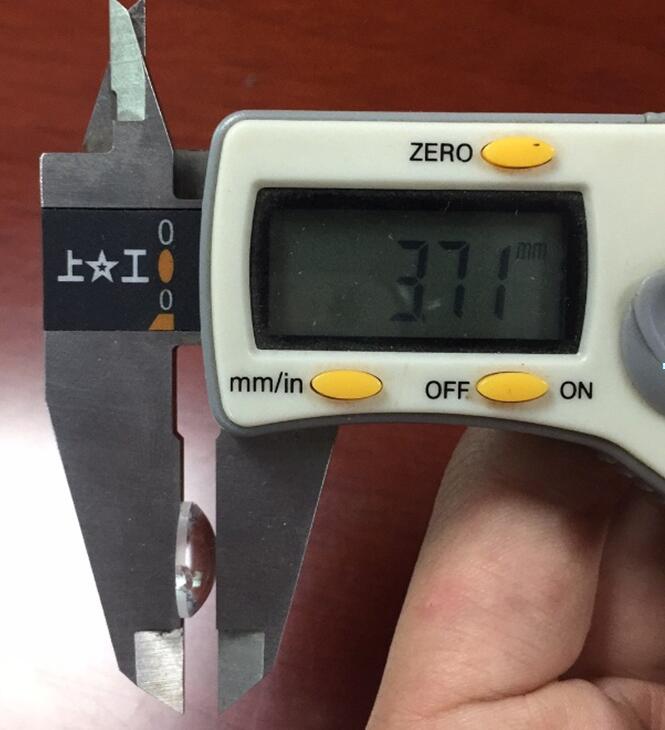

Thickness : 3.71mm tolerance : +-2mm

Angle : <1.5°

Cambered Surface : R8.06

The Lens Focal Length : f15.74

Material : quartz glass

Collimated Light LED Lens for Exposure Machine Suppliers

Hemispherical LED Quartz Glass Lens for Mask Aligner Distributors

Directional Light Plano-Convex Singlet Lenses

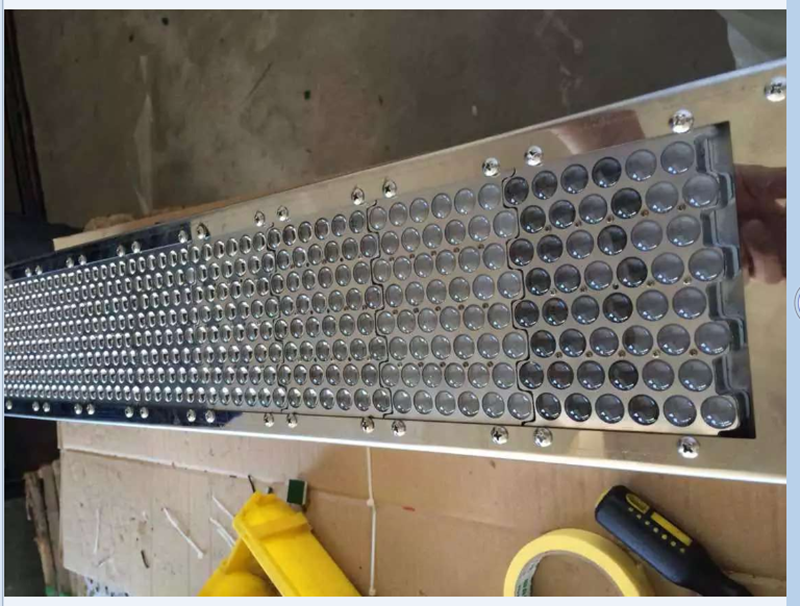

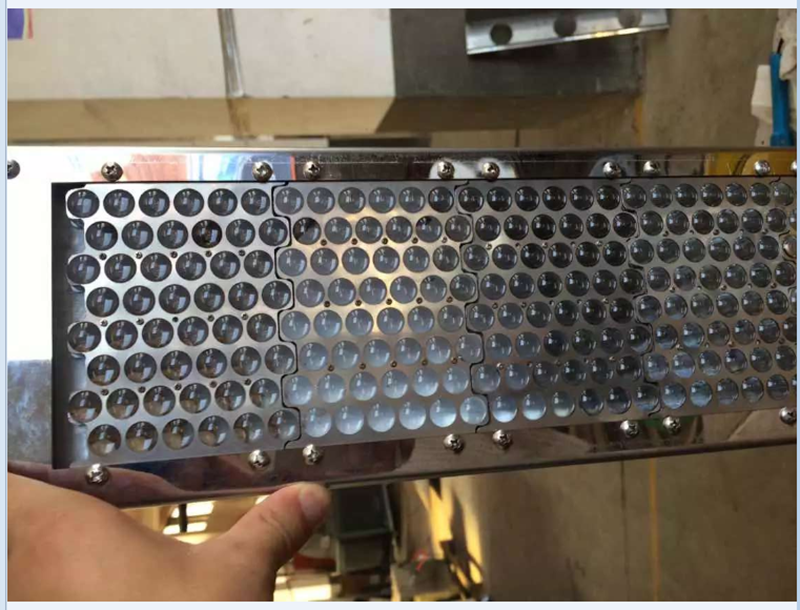

Use case reference suggestions of Collimated Light LED Lens for Exposure Machine :

Hemispherical LED Quartz Glass Lens for Exposing Machine

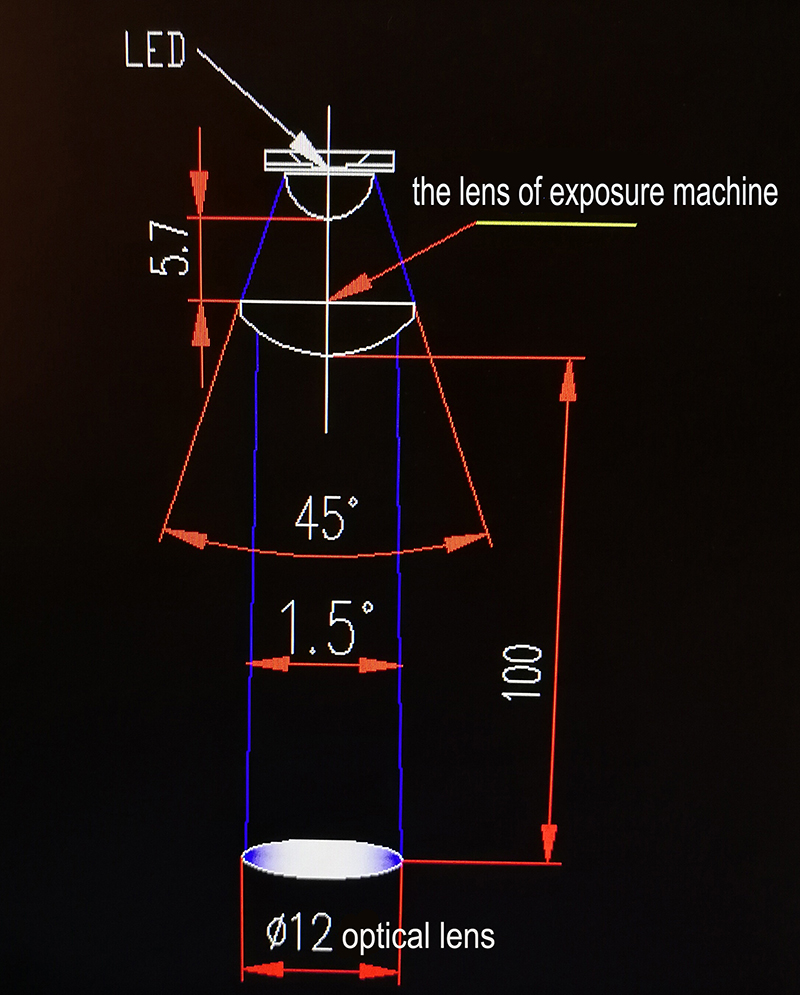

1.5 Degree Plano-Convex Singlet Lens for 2 Meters Long Exposure Machine

Related Tags : Parallel Light LED Quartz Lens for Exposing Machine Hemispherical LED Quartz Glass Lens for Mask Aligner Collimated Light LED Lens for Exposure Machine Parallel UV Light Lens Collimation Parallel UV Light Source Lens
